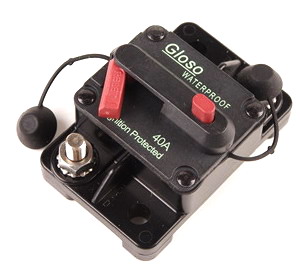

E99 Hi-Amp Circuit Breaker
E99 Hi-Amp Circuit Breaker

Model:E99

Detail Specifications / Descriptions

Rating: 25-200A, 48Vdc
Interrupt Rating: 3000A @ 30Vdc
Operating Temperature Rating: –25°F (–32°C) to 180°F (82°C)
Storage Temperature Rating: –30°F (–34°C) to 300°F (149°C)
Materials: Black UL-Rated 94V0 thermoplastic. Thermoplastic elastomer stud insulators are provided on covered units
Marking: Custom marking are available
Termination: 1/4-28 and 3/8 threaded studs are both available
Torque Rating: 50 in-lbs (5.6N•m) max
Mounting Torque Rating: Panel or surface-mount options_ 50 in-lbs (5.6N•m) max. Threaded insert
option has a max torque of 25 in-lbs (2.8N•m).
Ingress Protection Rating: IP67
Compliances: SAE J1625_ ABYC E-11_ CE_ SAE J1171 (ignition protected)
