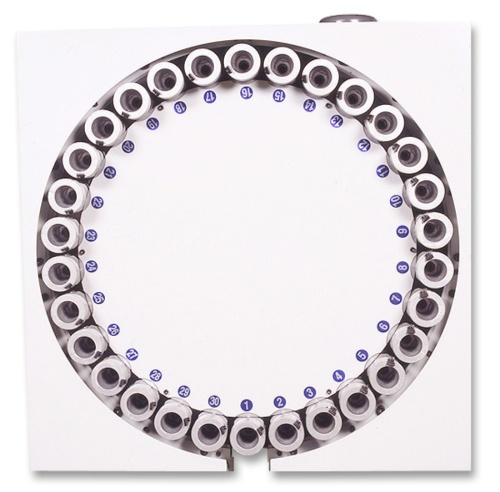

Disc Type Magazine (cam-type tool change)
Disc Type Magazine (cam-type tool change)

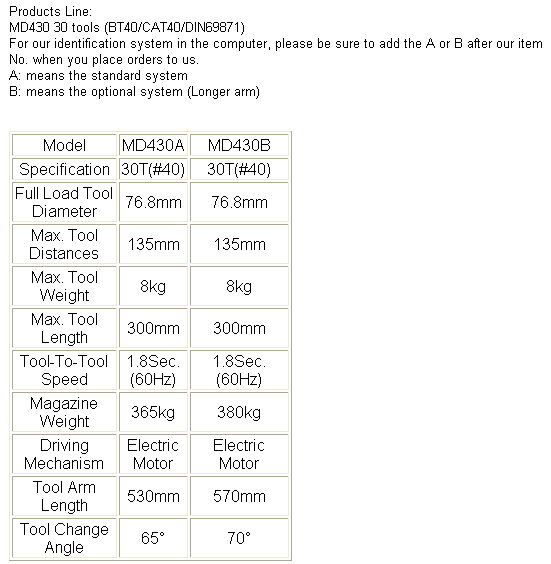

Model:MD430A,B Country of Origin:Taiwan

Detail Specifications / Descriptions

Auto CAD download MD430A, MD430B

1.Disc drum is materialized by aluminum alloy. Lightweight design reduces the loading on machine column and enhances the utmost accuracy of the machine.
2.Fixed by two roller bearing on the disc drum enhancing the loading capacity and promoting the quality stably.
3.Tool disc was specially designed for one set-up machining. The accuracy and strength are enhanced. No crack happened when collision.
4.Roller bearing is installed on tool disc indexing. The loading capacity is promoting and the rotation is smoother.
5.Cylindrical cam is employed for disc indexing. It is materialized by CR-MO alloy steel and machined in one set-up. The highest accuracy and stability are kept all the time.
6.The cylindrical can is specially design to fix and position adjustment can be easily done in a second.
7.Cylindrical cam was fixed by two cone bearings. The loading capacity is enhanced and quality is more stable.
8.Tool counting block was fixed by keyway design. The angle is absolutely correct and no lose motion happened.
9.Tool counting system is designed for approximate switch. The highest reliability is easily reached.
10.German-made approximate switch is enhancing the utmost reliability.
11.Tool disc rotation is driven by 1:1 ratio gear set. The transmission is effectively reached without lose motion.
12.Transmission gear set is two sets of spur gears. The assembly and maintenance are simple and reliable.
13.Transmission motor is designed for vertical motor and motor flange Making the assembly and disassembly are simple and easy.
14.Home point design on tool magazine with approximate switch makes the wiring connection as easy as possible.
15.Tool pocket up/down is moved by pneumatic cylinder. The reliable movement can be easily reached.
16.Tool pocket up/down cylinder combined with transmission spur gear enhance the capacity of heavy loading.
17.Gear rack and spur gear combined with eccentric wheel make the tool pocket up/down movement as accurate as possible.
18.S45C Clamping Jaws was machined in one set-up. The highest strength and reliability are reached.

Auto CAD download MD430A, MD430B
