Power inverters
Power inverters

产品型号:M30-12E, M30-24E 原产地:台湾

详细规格及用途描述

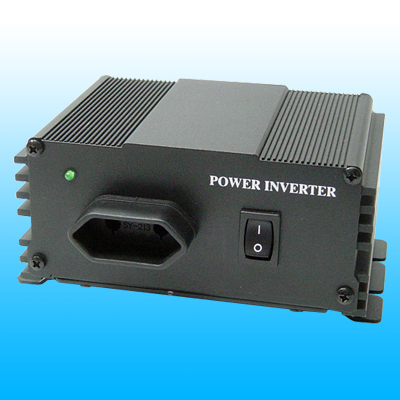

M30-12E, M30-24E Modified Sine wave Power Inverter with 50Hz or 60Hz Frequency and 300W Continuous Power

300W pure sine wave inverter:
Maximum continuous power: 300W
Maximum surge capability (peak power): 500W

No load current draw:
12V DC to 230V AC: <0.2A
24V DC to 230V AC: < 0.14A

DC input voltage range:
12V DC: 10.5 to 16.5V
24V DC: 21V to 30V

.AC output voltage range: 230V
.Frequency (may be as specified): 50Hz or 60Hz
.Efficiency: greater than 90%

Low battery alarm:
12V DC: 10.5V
24V DC: 21.0V

Low battery shut-off:
12V DC: 10V
24V DC: 20V

.Wave form: modified sine wave
.Dimensions: 127.5 x 148.5 x 66mm
.Net weight: 0.74 kg

Function of LED:
.Green: power on

Protection:
Input low voltage
Input over voltage
Low battery alarm
Over temperature
Overload
Short circuit
