Standard battery chargers
Standard battery chargers

产品型号:WT-1225-TC/WT-2415-TC 原产地:台湾

详细规格及用途描述

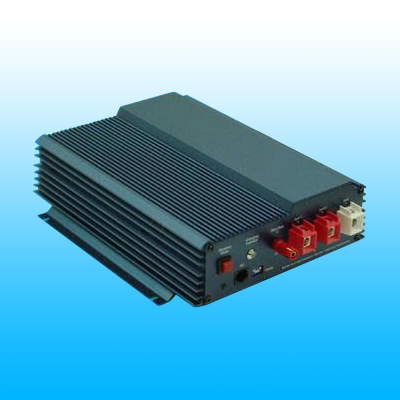

WT-1225-TC/WT-2415-TC Standard Battery Chargers with Two plus 1A Output for Starter Battery

.Battery connections: two plus 1A output for starter battery

Input voltage range:
115VAC: 98VAC to 132VAC/60Hz
230VAC: 207VAC to 253VAC/50Hz to 60Hz

Charging end voltage:
WT-1225-TC: 14.4V/14.8V
WT-2415-TC: 28.8V/29.6V

Economic charging voltage:
WT-1225-TC: 13.8V
WT-2415-TC: 27.6V

Maximum battery capacity:
WT-1225-TC: 300Ah
WT-2415-TC: 200Ah

.U0 phase limitation: 4 or 8 hours

Maximum charging current:
WT-1225-TC: 25A
WT-2415-TC: 15A

.Operating temperature range: 0 to 50 degrees Celsius
.Dimensions: 240 x 77 x 310mm

Fuse:
115VAC: T8A/250V
230VAC: T4A/250V

.Weight: 3.5kg
