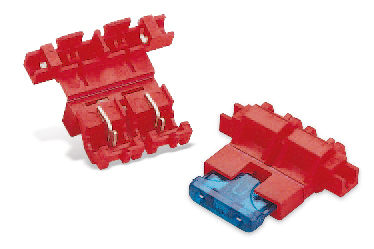

ATY-N BLADE FUSE HOLDER
ATY-N BLADE FUSE HOLDER

产品型号:202-302R

详细规格及用途描述

Specifications :
.Dielectric Strength For 60 Seconds: AC 1500V Min.
.Suitable Rated Current: 10A 32V DC
.Insertion & Extraction Force: 1 Kg Min.
.Contact Resistance at 1A DC: 5mΩ Max.
.Insulation Resistance At 500V DC: 100MΩ Min.
.Voltage Drop: 20m V Max.
.Temperature Rise: 50ºC Max.
.Body Material: PP.
.Applicable Fuse: ATY-N ( ATC, ATO ).
.Terminal: Brass Nickel Plated, Finish: Tin-plated
.Suitable Wire Gauge: 18 - 22 GA ( 0.3-0.8 mm2 ).

ATY-N BLADE FUSE HOLDER
