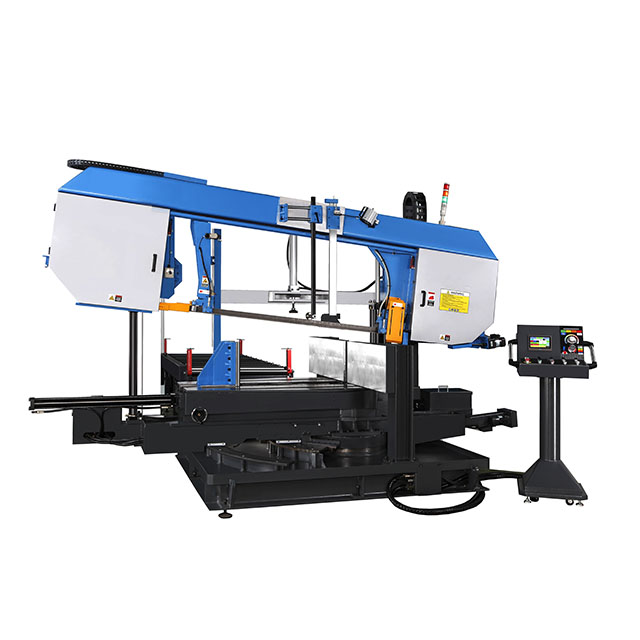

Professional Double Miter Cutting Bandsaw
Hot- 产品型号:
- MW0603-027
- 原产地:
- 台湾
- 材质:
- To be advised
- 颜色:
- Final detail to be provided on formal quotation sheet
详细规格及用途描述
Feature
Variable saw bow rotation for double miter cutting (L60°, R45°)
Linear guides for fast and accurate movement
Blade guide arm automatically slides to vise clamping position
Blade tilted 6.5° design for cutting wide work-piece or H beam
Malfunction auto-detecting to show on the touch screen
Description
Use motor inverter to adjust variable blade speed of Miter Cutting Band Saw
Select the cutting mode on touch screen for saw bow auto-rotation
Equip with the Hydraulic blade carbide guide pads, hydraulic blade tension control device, Ppower drive swarf brush & conveyer
Drive head’s angle and positioning by hydraulic motor and brake
Specification
Cutting Capacity (H x W)
(1) 90° ● 650 mm ▇▇ 650 x 1100 mm
(2) L45°● 650 mm ▇ 650 x 650 mm
(3) L60°● 650 mm ▇▇ 650 x 400 mm
(4) R45°● 650 mm ▇ 650 x 650 mm
Blade Size: 54 x 1.6 x 8730 mm
Blade Speed: 30 ~ 110 MPM
Blade Motor: 10 HP
Hydraulic Motor: 3 HP
Coolant Motor: 1/4 HP
Table Height: 830 mm
Packing Size (L x W x H): 4550 x 2270 x 2560 mm
N.W.: 5200 KGS

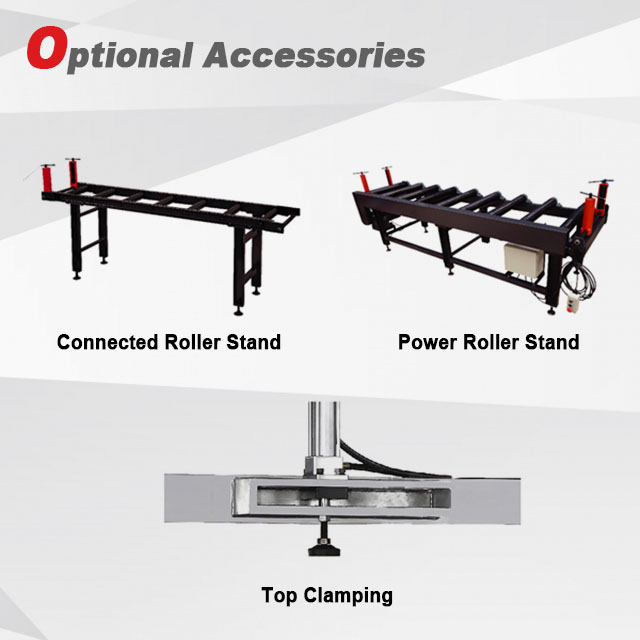

Optional Accessories:
Connected Roller Stand
Power Roller Stand: 3120 x 1430 x 1140 mm
Top Clamp
The product pictures are for your reference only: final spec & accessories based on formal quotation
