喂料机与针织机
喂料机与针织机

产品型号:SFPE

详细规格及用途描述

Specifications:

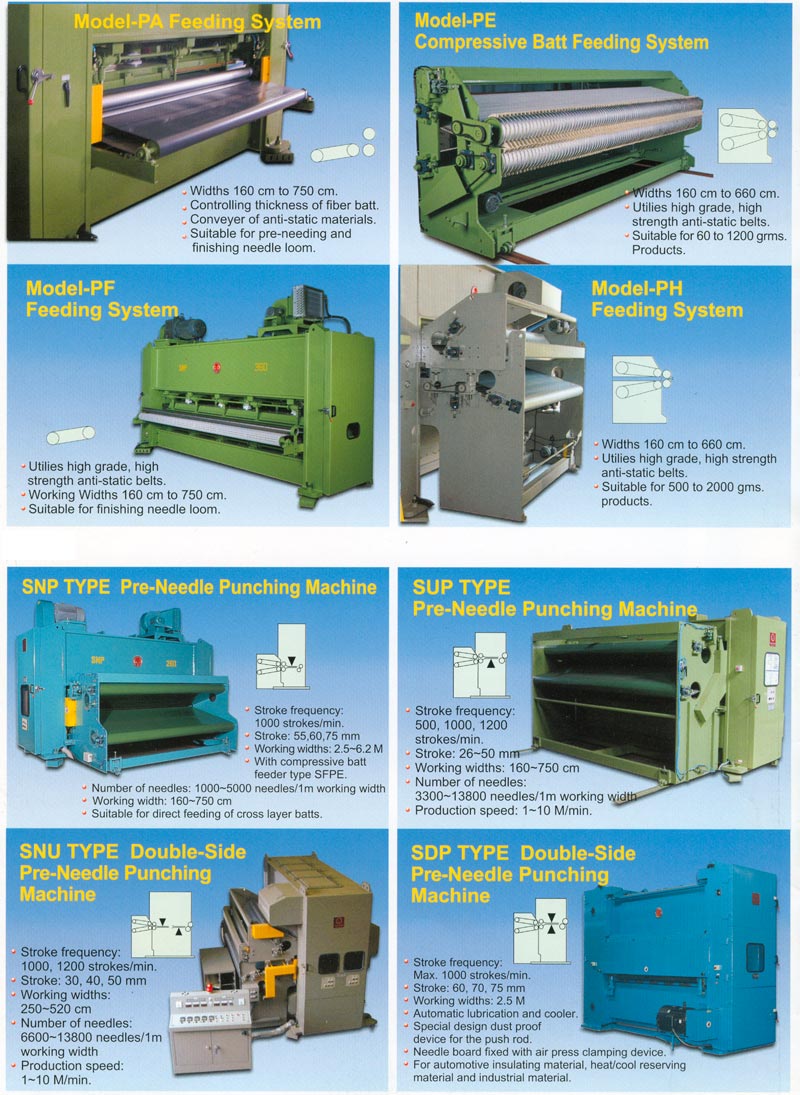

* Model-PA Feeding System
o Widths 160cm to 750cm
o Controlling thickness of fiber batt.
o Conveyer of anti-static materials
o Suitable for pre-needing and finishing needle loom

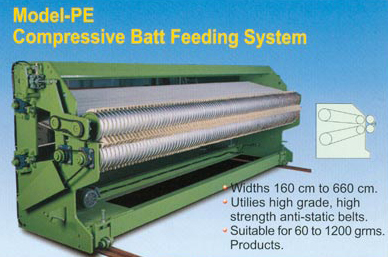

* Model-PE Compressive Batt Feeding System
o Widths 160cm to 660cm
o Utilies high grade,high strength anti-static belts
o Suitable for 60 to 1200 grms.
* Model-PF Feeding System
o Utilies high grade,high strength anti-static belts
o Working Widths 160 cm to 750 cm
o Suitable for finishing needle loom.
* Model-PH Feeding Sstem
o Widths 160cm to 660cm
o Utilies high grade,high strength anti-static belts
o Suitable for 500 to 2000gms.
* SNP TYPE Pre-Needle Punching machine
o Stroke frequency:1000 stroke / min
o Stroke:55,60,75mm
o Working Widths:2.5 ¡V 6.2M
o With compressive batt feeder type SFPE.
o Number of needles:1000 ¡V 5000 needle / 1m working width
o Working width:160 ¡V 750 cm
o Suitable for direct feeding of cross layer batts.
* SUP TYPE Pre-Needle Punching machine
o Stroke frequency:500,1000,1200 strokes / min
o Stroke:26 ¡V 50 mm
o Working width:160 -750 cm
o Number of needles:3300 ¡V 13800 needle / 1m working width
o Production speed:1 ¡V 10 M / min
* SNU TYPE Double-Side Pre-Needle Punching machine
o Stroke frequency:1000,1200 stroke / min
o Stroke:30,40,50 mm
o Working widths:250 ¡V 520 cm
o Number of needles:6600 ¡V 13800 needle / 1m working width
o Production speed:1 ¡V 10 M / min
* SDP TYPE Double-Side Pre-Needle Punching machine
o Stroke frequency:Max.1000 stroke / min
o Stroke:60,70,75 mm
o Working widths:2.5 M
o Automatic lubrication and cooler
o Special design dust proof device for the push rod
o Needle board fixed with air press clamping device
o For automotive insulating material,heat/cool reserving material and industrial material.
