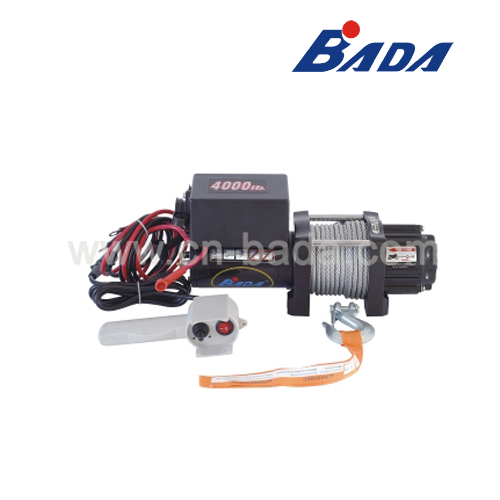

电动绞车
电动绞车

产品型号:DW4000 原产地:中国

详细规格及用途描述

• 12v DC 1.75hp(1.3kw) Permanent magnet motor

• Power load in and Power out

• Full metal planetary gear system

• Automatic braking system

• Cam action clutch for free-spooling

• Handsaver strap included

• Circuit breaker protected

• Weather sealed solenoid with ON/OFF

• Sealed handlebar remote with power ”ON” indication

• Mounting plate and 4-way Roller fairlead

• Rated line pull:4000lb.(1818kg);Single-line and First layer performance

• Gear ratio: 145:1

• Wire rope(Dia.xL):0.22”x46’(5.6mmx14m)

• Drum size(Dia.xL):2.16”x2.95”(55x75mm)

• Overall dimensions(LXWXH):

13.11"x4.53"x4.57"(333mmx115mmx116mm)


• Mounting plate and 4-way Roller fairlead

• Rated line pull:4000lb.(1818kg);Single-line and First layer performance

• Gear ratio: 145:1

• Wire rope(Dia.xL):0.22”x46’(5.6mmx14m)

• Drum size(Dia.xL):2.16”x2.95”(55x75mm)

• Overall dimensions(LXWXH):

13.11"x4.53"x4.57"(333mmx115mmx116mm)
