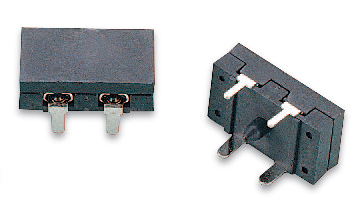

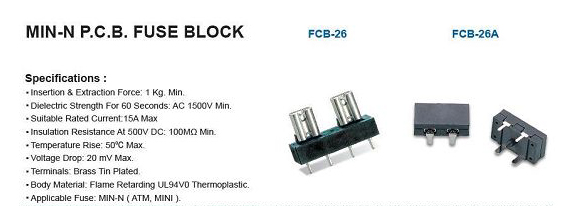

MIN-N P.C.B. FUSE BLOCK
- 產品型號:
- FCB-26/FCB-26A
詳細規格及用途描述
Specifications : .Insertion & Extraction Force: 1 Kg. Min.
.Dielectric Strength For 60 Seconds: AC 1500V Min.
.Suitable Rated Current:15A Max
.Insulation Resistance At 500V DC: 100MΩ Min.
.Temperature Rise: 50ºC Max.
.Voltage Drop: 20 mV Max.
.Terminals: Brass Tin Plated.
.Body Material: Flame Retarding UL94V0 Thermoplastic.
.Applicable Fuse: MIN-N ( ATM, MINI ).
