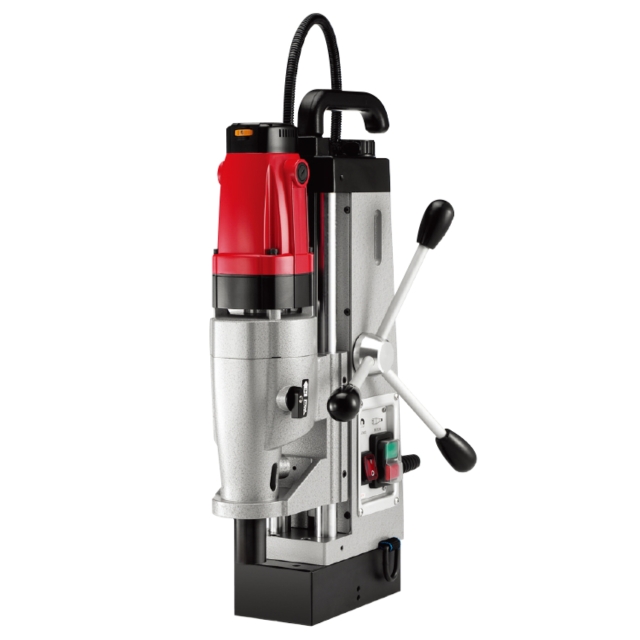

Magnetic Drill
- 產品型號:
- TF-650E/TF-1000E/TF-1600E
詳細規格及用途描述
攜帶式磁性穴鑽機高品質、高馬力、更耐用
特點
特殊過載離合器裝置。
馬達超負載自動斷電裝置。
高密度、高強度材料製作，可提高機具壽命。
高扭力、重效率，加工精確。
磁力強、重量輕，操作容易。
輕巧設計，符合人體工學，增加機動性。
Specification
TF-650E
Power Input
Voltage
RPM
Core Dril
Max Cutting Depth
Twist Drill
Tool Holder
Magnetic Adhesion
Weight
2000W
230V/50Hz110V/60Hz
Two SpeedsHigh 500/200Low 260/100
ø12mm-ø65mm
75mm
up to ø25mm with Morse Taper
MT3
1800kg
27kg
TF-1000E
Power Input
Voltage
RPM
Core Dril
Max Cutting Depth
Twist Drill
Tool Holder
Magnetic Adhesion
Weight
2400W
230V/50Hz110V/60Hz
Two SpeedsHigh 450/200Low 190/80
ø12mm-ø100mm
75mm
up to ø32mm with Morse Taper
MT3
3200kg
34kg
TF-1600E
Power Input
Voltage
RPM
Core Dril
Max Cutting Depth
Twist Drill
Tool Holder
Magnetic Adhesion
Weight
3600W
230V/50Hz110V/60Hz
Two SpeedsHigh 410/170Low 150/70
ø12mm-ø160mm
110mm
Up to ø44mm with Morse Taper
MT4
3900kg
53kg
