F16 MFG CO., LTD. |
Product Information - Low voltage

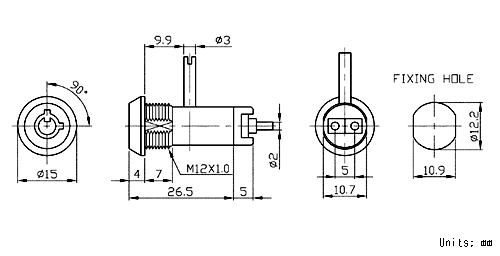

Detail Specifications
Material : Zinc alloy die cast housing and cylinder ;
Zinc alloy nut ; super hard. copper alloy contacts
Finish : Chrome plated housing and cylinder ;
silver plated nut ; silver plated contacts
Mechanism : 5 disc tumbler cylinder ; 200 combinations
Feature : 2 terminals change-over type
Electrical specification:
Contact rating : 2A 125VAC
Contact resistance : Below 5 million OHMS
Insulation resistance : 500 million OHMS Min.
Dielectric strength : 1000V RMS Min.
