Product Information - Low voltage

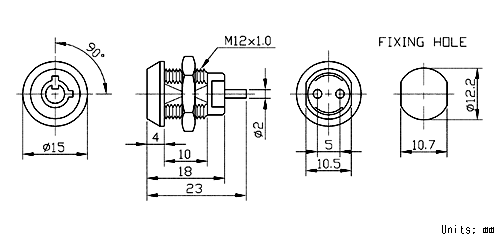

Detail Specifications
Material : Zinc alloy die cast housing and cylinder ;
Zinc alloy nut ; super hard. copper alloy contacts
Finish : Chrome plated housing and cylinder ;
silver plated contacts and terminals
Mechanism : 5 disc tumbler cylinder ; 10 combinations
Feature : 2 or 3 terminals change-over type
Electrical specification:
Contact rating : 1A 125VAC , 0.5A 250VAC
Contact resistance : Below 10 million OHMS
Insulation resistance : 200 million OHMS Min.
Dielectric strength : 1000V RMS Min.
