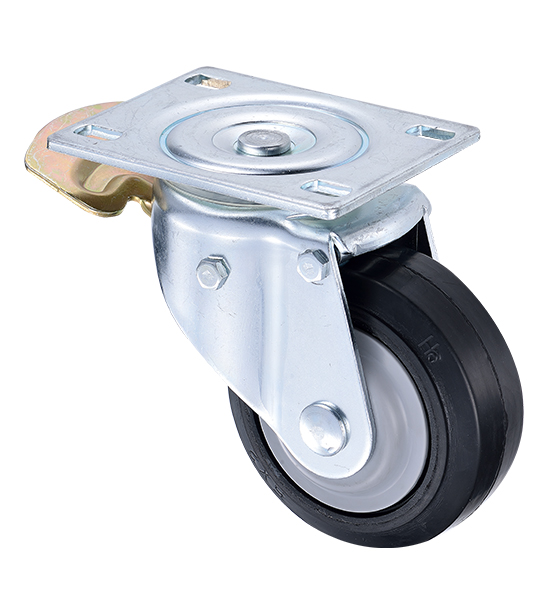

5 inch Heavy Duty Rubber Caster

  • Country of Origin:Taiwan
  • Model:A52BR-HS
  • Material:Elastic Rubber
Inquire Now
Type: Rear Total Lock Caster
Wheel Diameter x Width: 5x2 inch (125x50 mm)
Overall Height: 167 mm
Load Capacity: 400 kg
Bolt Hole Center: 77x112 mm
Plate Size: 113x142 mm
Bolt Hole: Φ12x20
Wheel Bearing: #6203 Double Ball Bearings
Fork Structure: Pressed Steel;Zinc Plated
Eccentricity: 55 mm
Wheel Core: Cast Iron Core
Weight: 3.7 kg
Others: Plastic Wheel Cover

1. Wheel: Elastic Rubber Wheel, with the features of high elasticity, good load capacity and wear resistances.
2. Wheel Core: Cast Iron Core to strengthen the structure and increase the load capacity.
3. Bearing: #6203 double ball bearings to enhance the rotation.
4. Fork: Rear Total Lock with top plate. Pressed steel and integrally formed. Zinc plated.
5. Others: Plastic wheel cover to prevent the dust, water and other materials.
