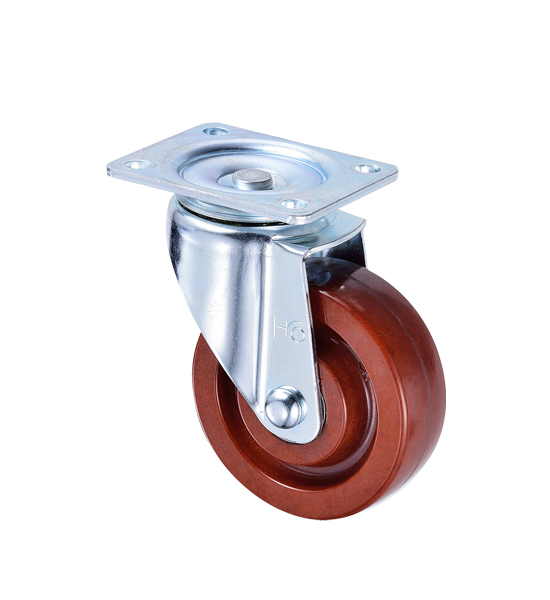

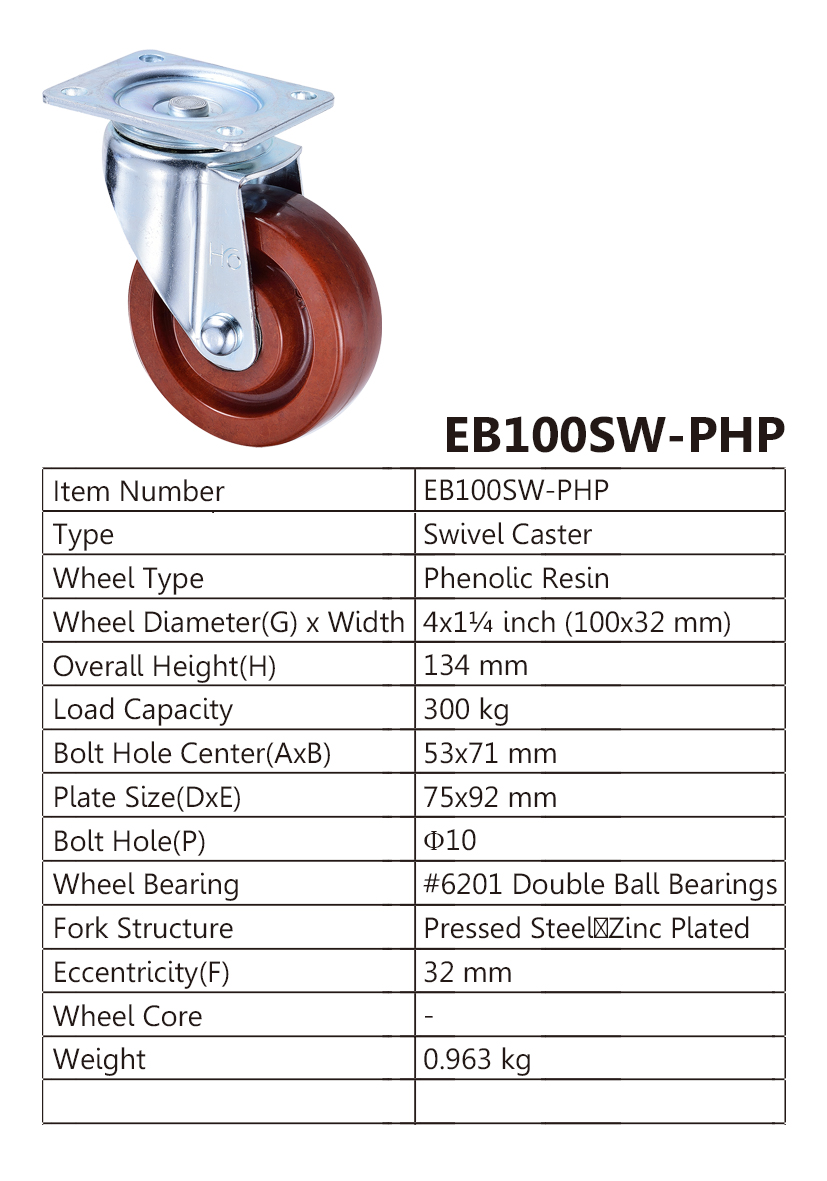

4 inch High Resistance Swivel Industrial Phenolic Caster
- Country of Origin:Taiwan
- Model:EB100SW-PHP
- Material:Phenolic Resin
Wheel Diameter x Width: 4x1¼ inch (100x32 mm)
Overall Height: 134 mm
Load Capacity: 300 kg
Bolt Hole Center: 53x71 mm
Plate Size: 75x92 mm
Bolt Hole: Φ10
Wheel Bearing: #6201 Double Ball Bearings
Fork Structure: Pressed Steel;Zinc Plated
Eccentricity: 32 mm
Weight: 0.963 kg
1. Wheel: Phenolic wheel filled with fabric and it provides the features of superior floor protection, and resists hard impacts, most chemicals and steam.
2. Bearing: #6201 double ball bearings to improve the rolling.
3. Fork: Swivel fork with top plate. Pressed steel and integrally formed. Zinc plated.
4. High temperature resistance: -20~+220℃
