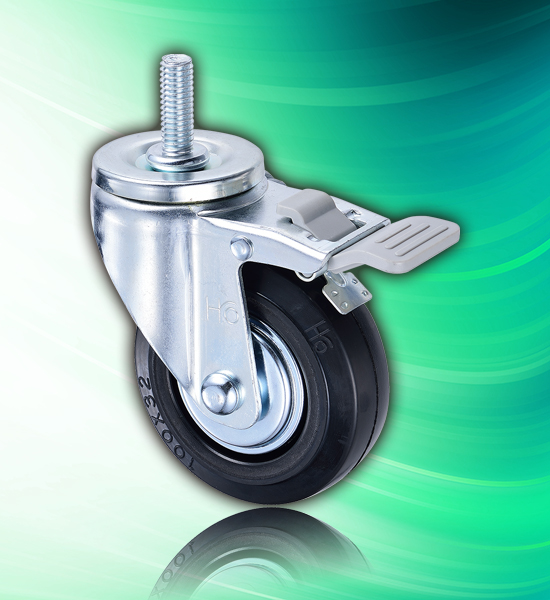

4" Height Adjustable Threaded Stem Rubber Caster Total Lock

  • Country of Origin:Taiwan
  • Model:EB100BFT-HG
  • Material:Elastic Rubber
Inquire Now
Type: Front Total Lock Caster(Threaded Stem)
Wheel Diameter x Width: 4x1¼ inch (100x32 mm)
Height: 131 mm
Load Capactiry: 200 kg
Stem Size: TΦ5/8 x 11
Stem Height: 35mm
Bearing: #6202 Double Ball Bearings
Fork Structure: Pressed Steel;Zinc Plated
Eccentricity: 32 mm
Wheel Core: Nylon Core
Weight: 1.2 kg
Others: Steel Wheel Cover

1. Wheel: Elastic Rubber Wheel, with the features of high elasticity, good load capacity and wear resistances.
2. Wheel Core: Nylon Core to increase the load capacity and the stability when moving.
3. Bearing: #6202 double ball bearings and sleeve bearings to improve the rolling and stability.
4. Fork: Front Total Lock with plastic brake pedal. Pressed steel and integrally formed. Zinc plated.
5. Steel wheel covers to prevent the dust, water and other materials.
6. Stem size: TΦ5/8 x 11 and TΦ1/2 x 12. Other requirement, please contact to our sales.
