OA Chair Back and Seat Use Riveting Machines
Furniture Machine
	HC-201 Powerful Furniture Riveting Machine
	Throat Depth : 12" Power : 1/2HP Stroke : 20 m/m
	N.W. : 250kgs G. W. : 300kgs
	Packing Size : 95"L / 100"W / 140"H
	HC-202 Furniture Riveting Machine
	Throat Depth : 12" Power : 1/2HP Stroke : 20 m/m
	N.W. : 220kgs G. W. : 280kgs
	Packing Size : 40"L / 26"W / 75"H
	HC-203 Furniture Riveting Machine
	Throat Depth : 12" Power : 1/2HP
	Stroke : 20 m/m N.W. : 220kgs G. W. : 280kgs
	Packing Size : 40"L / 26"W / 75"H
	HC-204 Steel Furniture Riveting Machine
	Throat Depth : 12" Power : 1/2HP
	Stroke : 70 m/m　　　N.W. : 160kgs　　　G. W. : 210kgs
	Packing Size : 34"L / 24"W / 63"H
	HC-205 Powerful Depth Size Riveting Machine
	Throat Depth : 24" /36" Power : 1/2HP
	Stroke : M/m N.W. : 500kgs G. W. : 600kgs
	Packing Size : 76"L / 45"W / 78"H
The various machines we produce are specially for producing: Helmet / Brief Case / Stroller / Footwear / Belt / Sunglass / Bag / Garment / Electronic / Hardware / Stationery / Raincoat ........etc.
Eyeleting Machine
	HC-208 Auto-Eyeleting Machine
	Throat Depth : 5"　　　Power : 1/4HP
	Stroke : 60 m/m　　　N.W. : 160kgs　　　G. W. : 240kgs
	Packing Size : 27"L / 26"W / 67"H
	HC-209 Semi Auto-Eyeleting Machine
	Throat Depth : 4 1/2" Power : 1/4HP
	Stroke : 50 m/m　　　N.W. : 100kgs　　　G. W. : 160kgs
	Packing Size : 31"L / 25"W / 67"H
	HC-210 Mini Eyeleting Machine
	Throat Depth : 4 1/2" Power : 1/4HP
	Stroke : 34 m/m N.W. : 70kgs G. W. : 126kgs
	Packing Size : 44 1/4"L / 26"W / 42 1/2"H
Twin Riveting Machine
	HC-215 Twin Riveting Machine
	Throat Depth : 14" Power : 1/2HP
	Stroke : 70 m/m N.W. : 400kgs G. W. : 500kgs
	Packing Size : 40 1/2"L / 30 1/2"W / 69 1/2"H
	HC-216 Twin Riveting Machine
	Throat Depth : 21" Power : 1/2HP
	Stroke : 50 m/m N.W. : 320kgs G. W. : 440kgs
	Packing Size : 51 1/4"L / 43 1/2"W / 56 1/4"H
Snap Fastening Machine
	HC-218 Automatic Snap Fastening Machine
	Throat Depth : 5" Power : 1/4HP
	Stroke : 50 m/m N.W. : 165kgs G. W. : 245kgs
	Packing Size : 27"L / 26"W / 67"H
	HC-219 Semi Automatic Snap Fastening Machine
	Throat Depth : 9" Power : 1/4HP
	Stroke : 50 m/m N.W. : 100kgs G. W. : 160kgs
	Packing Size : 29"L / 27"W / 60"H
Riveting Machine (1)




	HC-206 Riveting Machine (for making Briefcase)
	Throat Depth : 15" Power : 1/2HP
	Stroke : 70 m/m N.W. : 280kgs G. W. : 380kgs
	Packing Size : 40"L / 26"W / 75"H
	HC-207 Riveting Machine (for making Footwear)
	Power : 1/2HP
	N.W. : 180kgs G. W. : 260kgs
	Packing Size : 38"L / 22"W / 64"H
	HC-217 Table Type Riveting Machine
	Throat Depth : 9" Power : 1/4HP
	Stroke : 50 m/m N.W. : 100kgs G. W. : 160kgs
	Packing Size : 29"L / 27"W / 60"H
Riveting Machine (2)
	HC-211 Riveting Machine
	Throat Depth : 15" Power : 1/2HP
	Stroke : 95,105,130 m/m N.W. : 280kgs G. W. : 380kgs
	Packing Size : 40"L / 26"W / 80"H
	HC-212 Middle Riveting Machine
	Throat Depth : 12" Power : 1/2HP
	Stroke : 70 m/m N.W. : 220kgs G. W. : 280kgs
	Packing Size : 40"L / 26"W / 75"H
	HC-213 Mini Riveting Machine
	Throat Depth : 10 1/2" Power : 1/4HP
	Stroke : 40 m/m N.W. : 160kgs G. W. : 210kgs
	Packing Size : 34"L / 24"W / 63"H
	HC-214 Mini Riveting Machine
	Throat Depth : 10 1/2" Power : 1/4HP
	Stroke : 40 m/m N.W. : 160kgs G. W. : 210kgs
	Packing Size : 34"L / 24"W / 63"H
Other Machine
	HC-220 Hydraulic Riveting Machine
	Power : 3HP
	N.W. : 500kgs G. W. : 600kgs
	Packing Size : 42"L / 28"W / 76"H
	HC-221 Electric Strip Cutting Machine
	Power : 1/2HP
	Stroke : 20 M/m -120 Mm N.W. : 80kgs G. W. : 150kgs
	Packing Size : 65"L / 80"W / 120"H
	HC-222 Denumatic Riveting Machine
	Throat Depth : 4 7/8" Power : 1/2HP
	Stroke : 40 m/m N.W. : 120kgs G. W. : 155kgs
	Packing Size : 19"L / 19"W / 42"H

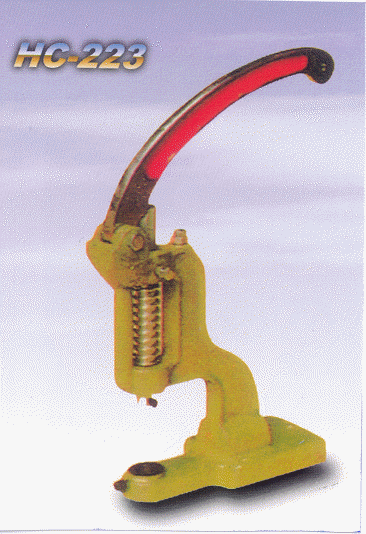

	HC-223 Hand Press
	Throat Depth : 3"
	Stroke : 30 m/m N.W. : 5.5kgs G. W. : 5.8kgs
	Packing Size : 16"L / 10"W / 4 1/4"H
