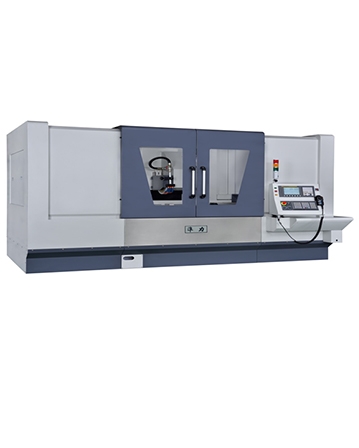

CNC Surface & Profile Grinder(Saddle series)
- Model：*JL-4080CNC-341
| Model | JL-4080CNC-341(Longwise Grinding) | |
|---|---|---|
| General Capaity | ||
| Table size (WxL)(mm) | 400x800 | |
| Max. Stroke (WxL)(mm) | 430x1100 | |
| Surface of Magnetic (WxL) (mm) | 400x800 | |
| Max. distance from center of Spindle to table(mm) | 650 | |
| Max. tableload (electro magnetic chuck is included)(Kgs) | 800 | |
| Spindle | ||
| Servo motor(Kw) | 11 | |
| Spindle speed (rpm) | 11 | |
| Dimension of the wheel | ||
| (ODxWxB)(mm) | ø355 x 50 x ø127 | |
| X-LongitudinalMovement | ||
| Stroke(mm) | Z axis:430 | |
| driven system(mm) | Ball screw | |
| Servo motor(Kw) | 4 | |
| Speed(rpm) | 10 | |
| Guildway | Linear guideway | |
| Y-WheelheadVertical Infeed | ||
| Stroke(mm) | 470 | |
| driven system(mm) | Ball screw | |
| Servo motor(Kw) | 4 | |
| Speed(rpm) | 10 | |
| The Least Input Increment(mm) | 0.001 | |
| 軌道 | Linear guideway | |
| Z-Cross Movement | ||
| Stroke(mm) | Z axis:1100 | |
| driven system(mm) | Ball screw | |
| Servo motor(Kw) | 4 | |
| Speed(rpm) | 20 | |
| Guildway | Linear guideway | |
| Grinding Wheel dresser | ||
| Dimension of diamond roller (OD x W x B)(option)(mm) | ø100 x max.50 x ø52 | |
| Speed(rpm) | 6000 | |
| Servo motor(Kw) | 0.5 | |
| Weight | ||
| Machine net weight(Kgs) | 9000 | |
| Space Size | ||
| Machine floor space(LxWxH)(mm) | ||
| (LxWxH)(mm) | 3490 x 3260 x 2355 | |
| Packing size (L×W×H)(mm) | ||
| (LxWxH)(mm) | 3700x2780x3050 | |
