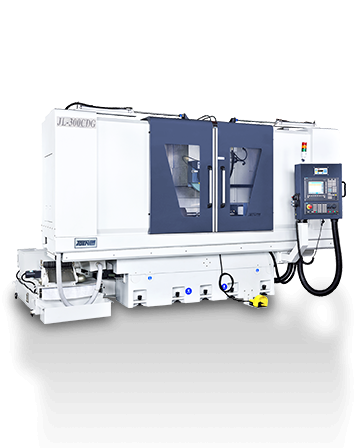

CNC Surface & Profile Grinder(Column series)
- Model：300 CDG
| Model | JL-300 CDG |
|---|---|
| General Capaity | |
| Table size (WxL)(mm) | 500x1000 |
| Max. Stroke (WxL)(mm) | 550x1100 |
| Max. distance from center of Spindle to table(mm) | 730 |
| Max. tableload (Kg) | 1100 (including rotary table) |
| T slots (diameter*number)(mm*N)(*mm) | 14*3 |
| Spindle | |
| motor(HP*P) | 15Kw 1PH8133 |
| Speed(rpm) | Max 8000/linear velocity<2000M/min |
| Dimension of the wheel | |
| (ODxWxB)(mm) | Ø 405*50* Ø 127 |
| CNC-320R + CNC-320R horizonal rotary + hydraulic | |
| table diameter(mm) | Ø300 |
| center height(mm) | 210 |
| tool specification | BT50 |
| Max. table load(Kg) | 85 |
| The Least Input Increment | 0.001 |
| indexing precision | 15” |
| repeatability accuracy | one way 4"/ double way 8" |
| brake torque(Kg.m) | 142 (hydraulic20Kg/cm2) |
| Wheel dresser | |
| Dimension of diamond roller (OD x W x B)(mm) | Ø150*20~30*Ø52 |
| Servo motor power/speed(Kw) | 0.82/1FK7042/3000rpm |
| LongitudinalMovement | |
| Stroke(mm) | 1100 |
| all screw ( diameter*thread distance)(mm) | Ø40*25 |
| Guildway | double V way |
| Servo motor | 5.23/1FK7103/2000rpm |
| Table speed(mm/min) | 0~25 |
| The Least Input Increment(mm) | 0.001 |
| Cross Movement | |
| Stroke(mm) | 550 |
| all screw ( diameter*thread distance)(mm) | Ø50*10 |
| Guildway | 55 type linear guideway |
| Servo motor | 2.29/1FK7063/3000rpm |
| Table speed(mm/min) | 8 |
| Speed reduction ratio | 0.1:0.3 |
| The Least Input Increment(mm) | 0.001 |
| Weight | |
| Machine net weight(Kgs) | 10000 |
| Packing Weight(Kg) | 10700 |
| Size | |
| Machine dimension(LxWxH)(mm) | |
| (LxWxH)(mm) | 4225*2975*2558 |
| Packing size (L×W×H)(mm) | |
| (LxWxH)(mm) | 4500*2290*2550 |
