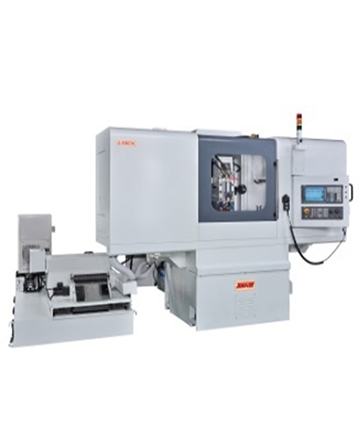

CNC Profile grinder for grinding Rail & Carriage(Carriage Grinding Machine)
- Model：*JL-3080CNC
| Model | JL-3080CNC |
|---|---|
| General Capaity | |
| Table size (WxL)(mm) | 300x800 |
| Max. Stroke (WxL)(mm) | 320x860 |
| Surface of Magnetic (WxL) (mm) | 300*600 |
| Distance from spindle to table(mm) | Min.115 ~ Max.455 |
| Distance from spindle to table (Z axis)(mm) | - |
| Y1軸心至工作台邊(主軸斜20度) | - |
| Y2軸心至工作台邊(主軸斜20度) | - |
| Distance from magnetic chuck to table (mm) | - |
| Spindle | |
| Number of spindles(mm) | 1 |
| Spindle type | Built-in type |
| outer diameter(mm) | ɸ120~ ɸ150 |
| motor(Kw) | 7 ~ 13 |
| Spindle speed (rpm) | 30000 ~ 120000 |
| Dimension of the wheel | |
| (ODxWxB))(mm) | Match spindle speed |
| LongitudinalMovement | |
| Stroke(mm) | 860 |
| Servo motor(Kw) | 2.5 |
| Table speed(mm/min) | 30 |
| The Least Input Increment(mm) | 0.001 |
| Gudieway | Linear guideway |
| WheelheadVertical Infeed | |
| Stroke(mm) | 320 |
| Servo motor(Kw) | 1.6 |
| Table speed(mm/min) | 5 |
| The Least Input Increment(mm) | 0.001 |
| Gudieway | Linear guideway |
| Cross Movement | |
| Stroke(mm) | 350 |
| Servo motor(Kw) | 1.6 |
| Table speed(mm/min) | 1 |
| The Least Input Increment(mm) | 0.001 |
| Gudieway | Linear guideway |
| Grinding Wheel dresser | |
| Dimension of the wheel (ODxWxB) (mm) | ɸ205*13*ɸ31.75 |
| Max. Speed (rpm) | 5000 |
| Servo motor(Kw) | 1 |
| Horizontal secondary spindle | |
| induction motor | 1.5*2 |
| Dimension of the wheel (ODxWxB) (mm) | ɸ205*13*ɸ31.75 |
| Weight | |
| Machine net weight(Kgs) | 5000 |
| Space | |
| Machine floor space(mm) | |
| (LxWxH)(mm) | 2900*2200*2630 |
