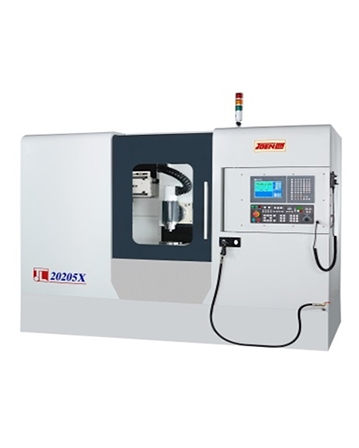

High Precision 5 Axis Milling & Grinding Machine
- Model：*JL-20205X
| Model | 20205X | |
|---|---|---|
| General Capaity | ||
| Table size(Max. working piece size) (WxL)(mm) | ψ200 (X200L) | |
| X axis stroke (longitude)(mm) | 588 | |
| Y axis stroke (cross)(mm) | 283.5 | |
| Distance from spindle to table(mm) | 430 | |
| X-LongitudinalMovement | ||
| Table speed(m/min) | 30 | |
| WheelheadVertical Infeed | ||
| Rapid power head elevation(mm/min) | 30 | |
| The Least Input Increment(mm) | 0.001 | |
| Z-Cross Movement | ||
| Powered Crossfeed(mm/min) | 30 | |
| Z axis stroke (vertical)(mm) | 600 | |
| Spindle | ||
| Spindle speed(rpm) | 24000 | |
| spindle tool specification | HSK-E40 | |
| B axis | ||
| B axis rotary angle(degree) | (+30 °~-110 °) | |
| C axis | ||
| B axis rotary angle(degree) | 0°~360 | |
| Min. angle graduation(degree) | 0.001 ° | |
| tool | ||
| Max. tool length(mm) | 150 | |
| Motor | ||
| Motor stator spindle(kw) | 4.5 | |
| longitude servo motor (X axis) (kw) | 1.5 | |
| Vertical servo motor (Z axis) (kw) | 3.5 | |
| Cross servo motor (Y axis) (kw) | 1.5 | |
| Sound pressure level | ||
| Sound pressure level dB(A) | Below 78dB (A) | |
| Weight | ||
| Machine net weight(Kgs) | 3500 | |
| Machine floor space(LxWxH)(mm) | 2700X2000X2150 | |
