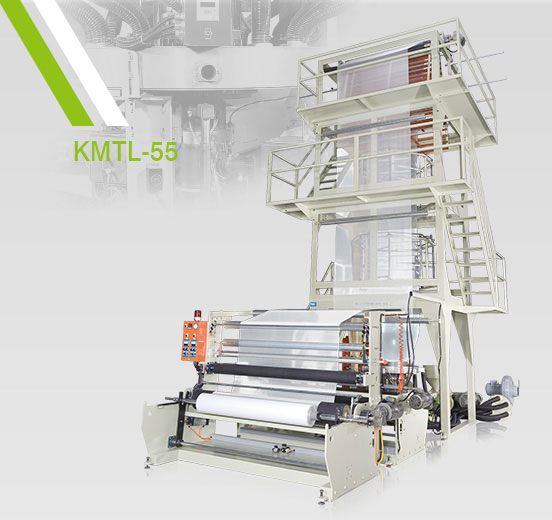

TWO LAYER HDPE/LDPE/ LLDPE HIGH SPEED PLASTIC INFLATION MACHINE
- Model：KMTL-55
DETAIL SPECIFICATIONS
| MODEL | KMTL-55 |
|---|---|
| KMTL-55 | |
| SUITABLE MATERIAL | HDPE/LDPE/LLDPE |
| HDPE/LDPE/LLDPE | |
| FILM THICKNESS | 0.025-0.15 mm |
| 0.025-0.15 mm | |
| FILM WIDTH RANGE | 1400 mm |
| 1400 mm | |
| FILM OUTPUT | 20-150 kgs/hr |
| 20-150 kgs/hr | |
| EXTRUDER UNIT | |
| SCREW DIAMETER/TYPE | Ø 55mm x 2 |
| Ø 55mm x 2 | |
| SCREW L/D RATIO | 28:1 |
| 28:1 | |
| HEATING CAPACITY | 24 kw |
| 24 kw | |
| AUTO THERMO CONTROL | 6 zone |
| 6 zone | |
| BARREL COOLING FAN | 1/8 HP x 4 |
| 1/8 HP x 4 | |
| DRIVING MOTOR | AC 30 HP + Inverter |
| AC 30 HP + Inverter | |
| DIE UNIT | |
| DIE DIAMETER | Ø350 mm |
| Ø350 mm | |
| AIR RING DIAMETER | Ø400 mm |
| Ø400 mm | |
| HEATING CAPACITY | 18.4 kw |
| 18.4 kw | |
| AUTO THERMO CONTROL | 3 zone |
| 3 zone | |
| COOLING BLOWER | 7 1/2 HP |
| 7 1/2 HP | |
| TAKE-UP UNIT | |
| TAKE-UP ROLLER | 1500 mm |
| 1500 mm | |
| EFFECTIVE WIDTH | 1400 mm |
| 1400 mm | |
| TAKE-UP MOTOR | AC 2 HP |
| AC 2 HP | |
| TAKE-UP SPEED | 45 m/min |
| 45 m/min | |
| ELEVATING MOTOR | |
| WINDING UNIT | |
| ROLLER WIDTH | 1500 mm |
| 1500 mm | |
| WINDING WIDTH | 1400 mm |
| 1400 mm | |
| WINDING MOTOR | DC 1 HP |
| DC 1 HP | |
| MACHINE DIMENSION | 500x500x800 cm |
| 500x500x800 cm | |
