Point Mark-KML-2000P-20B series

Point Mark-KML-2000P-20B series

Product Description

Product Name:
Point Mark-KML-2000P-20B series
Country of Origin:
Taiwan
Model:
KML-2501P-20B / KML-2502P-20B / KML-2503P-20B

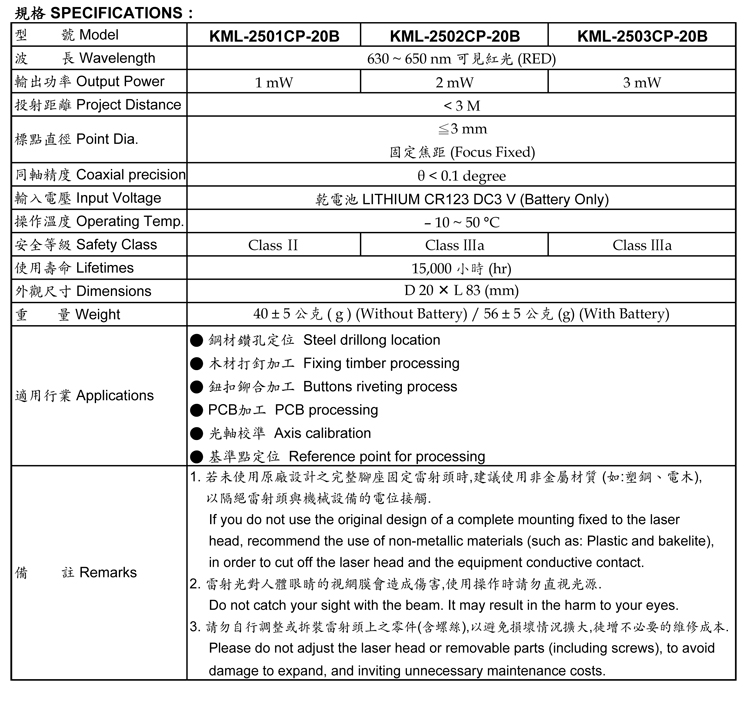

Detail Specifications

波長Wavelength:630 ~ 650 nm 可見紅光(RED)

輸出功率Output Power:1 mW / 2 mW / 3 mW

標點直徑Point Dia:≦3 mm 固定焦距 (Focus Fixed)

輸入電壓Input Voltage:乾電池 LITHIUM CR123 DC3 V (Battery Only)


操作溫度Operating Temp.:– 10 ~ 50 °C

安全等級Safety Class:Class Ⅱ / Class Ⅲa

使用壽命Lifetimes:>15,000 小時 (hr)

外觀尺寸Dimensions:D 20 X L 76 (mm)

重量Weight:35 ± 5 公克 ( g ) (Without Battery) / 50 ± 5 公克 (g) (With Battery)


● 鋼材鑽孔定位 Steel drillong location
● 木材打釘加工 Fixing timber processing
● 鈕扣鉚合加工 Buttons riveting process
● PCB加工 PCB processing
● 光軸校準 Axis calibration
● 基準點定位 Reference point for processing






特殊規格歡迎來電洽詢Special specifications please contact us
