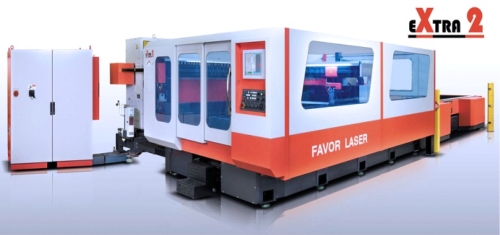

CNC Laser Cutting Machine
- Model:
- X2 series
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
ITEM NO.: X2-2040D
Basic structure: Flying Optics
Work table (working height): 800mm
X axis longitudinal working length: 4,050mm
Y axis cross working length: 2,050mm
Z axis vertical working length: 110mm
Rapid traverse rate: (X/Y) 100M/min (Z) 15M/min
Cutting feedrate: 0~20M/min
Cutting head: Non-contact capacitive sensor
Zero point and coordinates: Right-hand principle
Positioning accuracy (X/Y): Within ± 0.05mm/500mm
(X: within ± 0.15mm/total length of 4.0M)
(Y: within ± 0.05mm/total length of 2.0M)
Repeatability (X/Y): Within ± 0.01mm
Machine dimensions: 15M x 6.4M x 2M
Machine Weight: Aprox. 14tons
Oscillator: 3300W / 4000W / 4400W / 6000W
