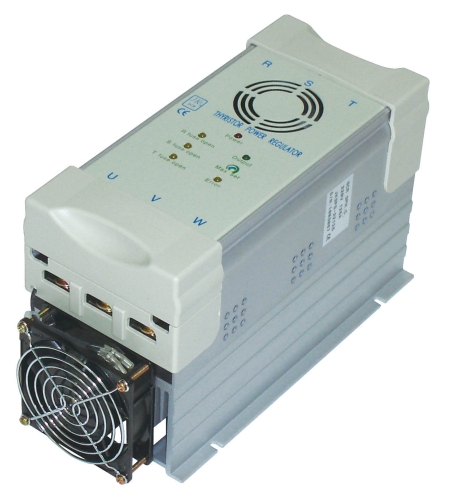

Thyristor Power Regulator. –Current Limit Series

1. This controller protector: 1.The input main power loses the one phase. 2. The fuse break and checks the notice. 3. This controller heat sink exceeds temperature to protect. 4. Unusually output the contact, offer the distant place to monitor and use, the capacity 240VAC/5A of contact.

2. This controller is tally with CE international quality standard confirmation.
3. It has R.S.T. one phase’s fuse wire broken LED light, and offer a output point for abnormal condition, also can be emergency control for the system.

4. Cooling fans has temperature control, the cooling sheet working at 55C, and stop at 45C, this design can extend use-life of fans 2-3 times.

5. Applied load: IR lamp, quartz lamp, MoSi2, heater. Use of shoe-making machinery, plastic blow molding machines, plastic extrusion machinery, high vacuum thermo-evaporator machine, vacuum film-sputtering machine, vacuum sputtering PVD thin film deposition machine, heat treatment furnace, electric furnace, electric boiler, enameled wire machine, drawn work machinery, textile machinery, constant temperature and humidity systems.

6. (1) Overload Protection: Flashing one time.
(2) The source of power is less phase sequence protection: Flashing two times.
(3) Three-phase unbalance protection: Flashing three times.
(4) The body over-temperature protection: Flashing four times.
(5) Load fuse break protection: Flashing five times.

7. Set the maximum current limit, allowing users to more diversified choice.
