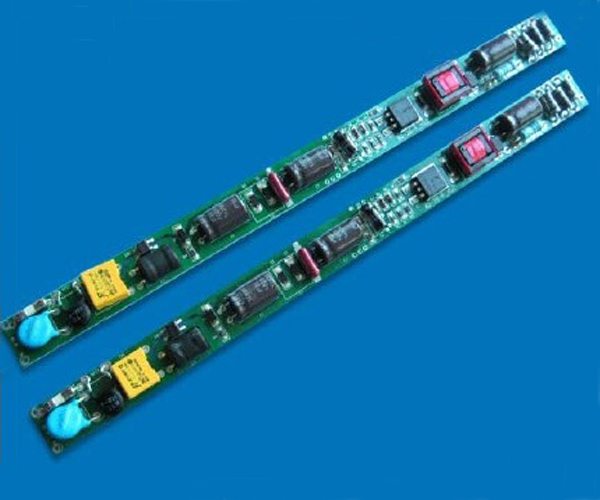

LED Driver
- Model:
- GRL00190A-XXXXNYYYY
Detail Specifications / Descriptions
Application Battery Type: Ball lamp etc.
Input:85-265Vac 50/60Hz 350mA Max
Energy Consumption:<0.3W,efficiency>80%
Output Voltage:5.0~48.0Vdc
Output Current: 0-0.7A
Operation Mode:CV down to 60%-100%
Protection Funtion:
Over-Current Protection
Short-Circuit Protection
Over-Voltage Protection
Over-temperature Protection
Efficient application; safe and reliable. Products in full compliance with the UL/VDE/3C/GS/SAA certification standards.
Safety Standard: EN61347、UL8750、UL1310
