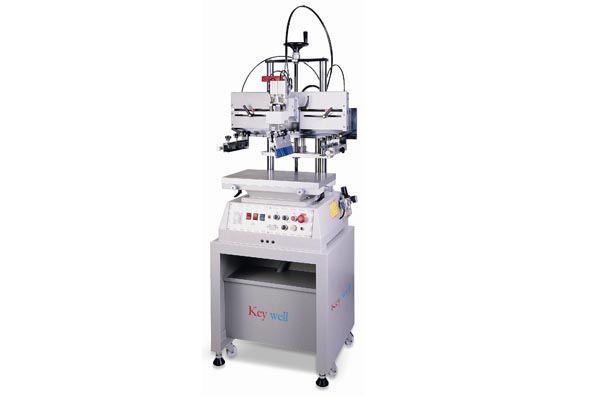

Small Format Pneumatic Screen Printer (With vacuum table)

Suitable for screen printing on acrylic, name plate stereo case, computer shell, stationary, gifts etc. with flat surface.

Product Feature
1. Printing transmission is by rodless cylinder with adjustable speed
2. THK sliding bearing rod for smooth movement.
3. Screen frame vertical up/down moving, easy for pouring ink.
4. Printing head can be 45? lifted for cleaning the squeegee and screen frame easily.
5. Movable frame clamps for clamping different screen frame sizes.
6. Vertical screen frame up/down movement is driven by cylinder.
7. The printing table is with vacuum. (F type)
8. The printing table with X/Y±10 mm micro adjustment for registration.
