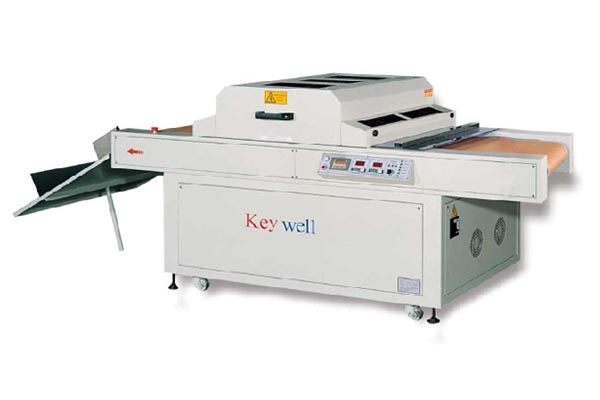

UV Conveyor Dryer (Standard Type)

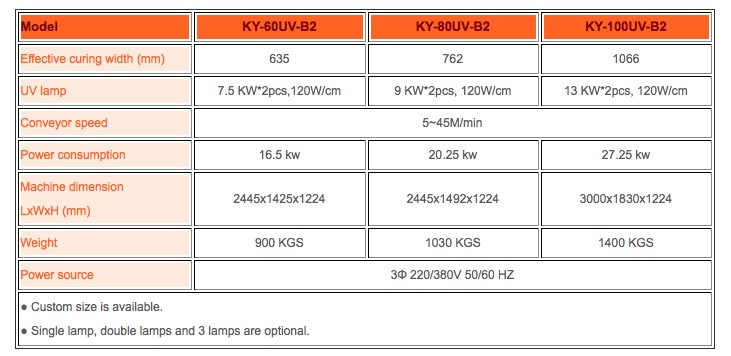

- Model:
- KY-60UV-B2, KY-80UV-B2, KY-100UV-B2
Detail Specifications / Descriptions
For curing sticker, PVC, FPC board, Polyester, film and heat-sensitive substrates after screen printing.
Product Feature
1. Machine body constructed by SS#41 high-grade steel with anti-rusted painting.
2. Transmission system: The conveyor belt is driven by reducer motor with inverter, the speed is adjustable.
3. With bottom suction to prevent the substrate from fluttering.
4. Lampshade: With unique aluminum extruded radiator, German reflector to achieve the maximum UV output.
5. The German quartz mirror under the UV lamp can reduce the UV ray temperature.(Optional)
6. The conveyor belt is with deviation adjustment to ensure long life of the belt.
7. Cooling system: Forcing cooling style, high efficiency cooling fan and special cooling structure to reduce the oven temperature.
8. Control panel: Power switch, UV lamp switch, tri-power switches (50%, 75%, 100%), current meter of each lamp, accumulating timer of each lamp, overheating indicator, emergency switch.
9. Safety device – overload protector, over temperature protector, exhaust overload protector, and fuse for control circuit.
