Metalworking Ratchet F-Clamp

Metalworking Ratchet F-Clamp

Model:

HT2300-044

Country of Origin:

Taiwan

Material:

Head : Hot forged steel ,Pad : Cold forged steel

Color:

Color of product based on formal quotation sheet

Minimum Order:

quantity negotiable- please enquire with us

Delivery Lead Time:

To be advised

Delivery FOB Port:

To be advised

Payment Condition:

T/T,Western Union

Detail Specifications / Descriptions
Feature

Strong type of F-clamp for great for metalwork projects at home, work and schools use
Upgraded ratchet version to avoid the limits of operation in confined or awkward spaces
Innovative ratchet design saves half the operation time and increases up to 20% clamping force when compared with T-handle clamps
Incorporating different shaped pads to increase versatility of use

Description

Clamping pressure up from 670kg to 1200kg suitable for all Metal Working Projects

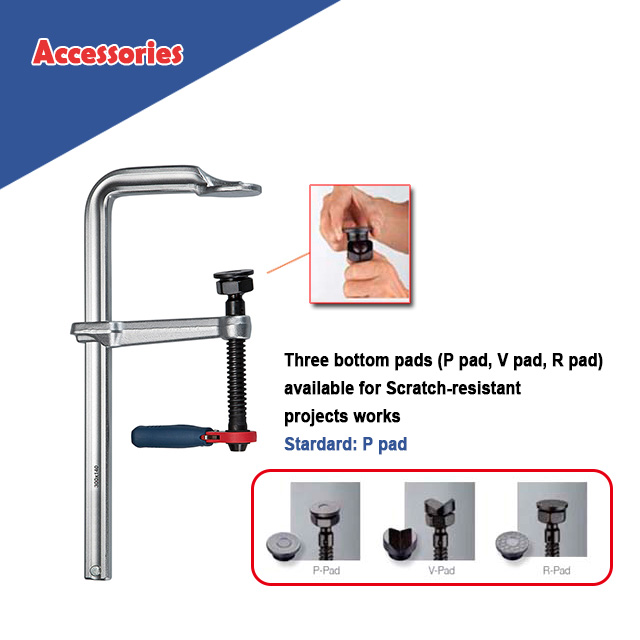

Three bottom pads (P pad, V pad, R pad) available for Scratch-resistant projects works
-P-pad accessory designed for clamping general working pieces
-V-pad accessory designed for clamping angular pieces
-R-pad accessory designed for increasing frictions on glossy-surface pieces
Manufactured in Taiwan without recycled or secondary materials

Specification

Item NO. Span x Depth Rail Weight Pressure Pack
  mm mm kg kg pcs
HT2300-044A 300 x 140 25.0 X 12.0 2.11 670 10
HT2300-044B 400 X 120 2.22 750
HT2300-044C 500 X 120 2.44
HT2300-044D 600 X 120 2.64
HT2300-044E 200 X 120   2.11 1000
HT2300-044F 250 X 120 27.0 X 13.0 2.23 10
HT2300-044G 300 X 120   2.35
HT2300-044H 400 X 120   2.6
HT2300-044I 500 X 120   2.85
HT2300-044J  600 X 120   3.1
HT2300-044K 250 X 120 30.0 x 15.0 2.87 1200 10
HT2300-044L 300 X 140 3.07
HT2300-044M 400 X 120 3.31 6
HT2300-044N 500 X 140 3.77
HT2300-044O 600 X 120 3.98
HT2300-044P 800 X 140 4.73
HT2300-044Q 1000 X 120 5.26 4
HT2300-044R 1250 X 120 6.05
HT2300-044S 1500 X 120 6.76
Material of Head : Hot forged steel
Material of Pad : Cold forged steel
Material of Bar : Cold drawn profiled steel with temper and harden process for high pressure strength
Surface Treatment : Nickel Chrome Plating
Material of Handle : TPR
