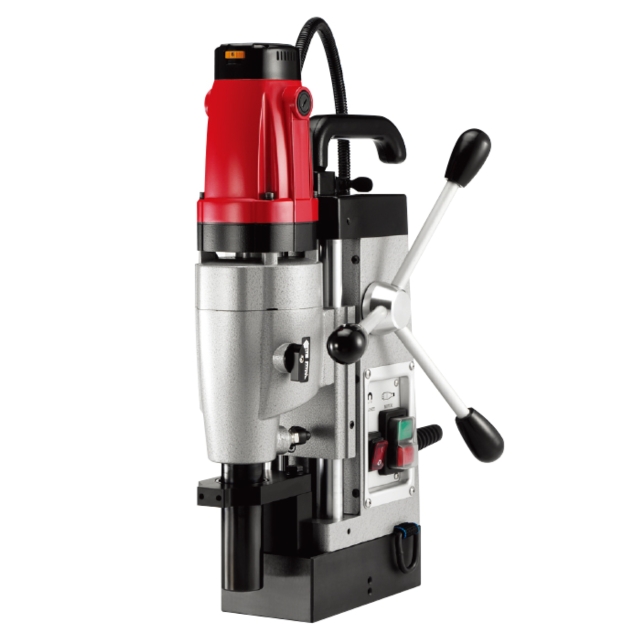

Magnetic Drill
- Model:
- TF-650E/TF-1000E/TF-1600E
Detail Specifications / Descriptions
Portable magnetic core drilling machine
Application
Bearing bracket for precision alignment of the spindle.
Overload protection device for the motor and cutter.
Powerful electric magnetic holding power.
Two-speed gear box plus variable speed control
Reliable and powerful motor
Adjustable cutting oil system for both horizontal & vertical drilling.
Optional Gutter sliding guard for isolating the cutting chips.
Built-in clutch for motor protection.
Motor can not be switched on until magnet is activated, double insulation.
All controls mounted at rear side for easy operation and access.
Soft start for the motor.
Specification
TF-650E
Power Input
Voltage
RPM
Core Dril
Max Cutting Depth
Twist Drill
Tool Holder
Magnetic Adhesion
Weight
2000W
230V/50Hz110V/60Hz
Two SpeedsHigh 500/200Low 260/100
ø12mm-ø65mm
75mm
up to ø25mm with Morse Taper
MT3
1800kg
27kg
TF-1000E
Power Input
Voltage
RPM
Core Dril
Max Cutting Depth
Twist Drill
Tool Holder
Magnetic Adhesion
Weight
2400W
230V/50Hz110V/60Hz
Two SpeedsHigh 450/200Low 190/80
ø12mm-ø100mm
75mm
up to ø32mm with Morse Taper
MT3
3200kg
34kg
TF-1600E
Power Input
Voltage
RPM
Core Dril
Max Cutting Depth
Twist Drill
Tool Holder
Magnetic Adhesion
Weight
3600W
230V/50Hz110V/60Hz
Two SpeedsHigh 410/170Low 150/70
ø12mm-ø160mm
110mm
Up to ø44mm with Morse Taper
MT4
3900kg
53kg
