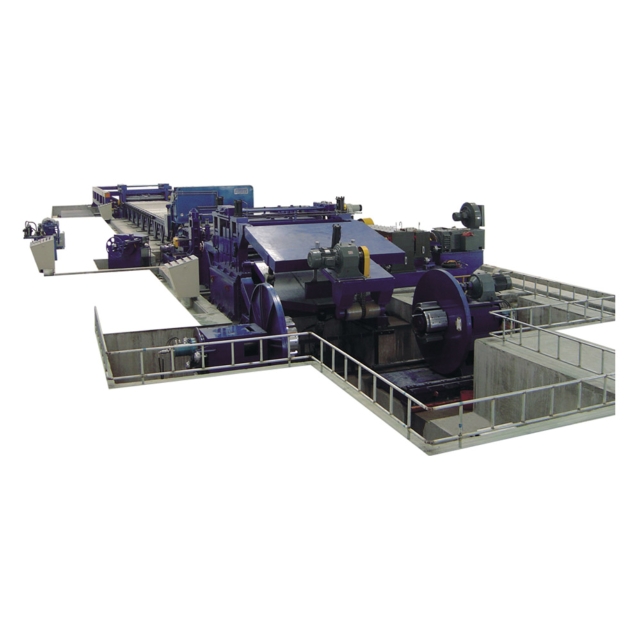

Coil Cut To Length Line

Coil Cut To Length Line

Detail Specifications / Descriptions



This line is designed for cutting of CR / HR carbon steel, Galvanized Coils into sheets of prescribed size and heap them up on Piler.

Mechanism： ※ Optional accessories
  1. Coil car
  2. Uncoiler
  3. Leveler
  4. Pit with guider
  5. Side Guide
  6. NC control conveyor
  7. Shear
  8. Conveyor
  9. Piler (Piler car)
  • Tape (Paper) stand
  • Edge trimmer
  • Electrostic generator


Modle Coil Width Wall thickness Machine Speed Coil Weight
JWCT-0825 800mm (Max.) 0.4 mm - 2.0 mm 45pc / min under 500mm 10 MT
JWCT-4020 1220mm (Max.) 0.4 mm - 2.0 mm 45pc / min under 500mm 15 MT
JWCT-4030 1220mm (Max.) 0.4 mm - 3.0 mm 40pc / min under 500mm 15 MT
JWCT-4060 1220mm (Max.) 1.0 mm - 6.0 mm 30pc / min under 500mm 20 MT
JWCT-5030 1525mm (Max.) 0.4 mm - 3.0 mm 40pc / min under 500mm 20 MT
JWCT-5040 1550mm (Max.) 0.5 mm - 4.0 mm 40pc / min under 500mm 20 MT
JWCT-5060 1550mm (Max.) 2.0mm - 8.2mm 30pc / min under 500mm 20 MT
JWCT-7130 2100mm (Max.) 3.0 mm - 13.0 mm 5 M ~ 40M / min 20 MT





Company: JANG WUEL STEEL MACHINERY CO., LTD.
Address: No. 186, Liuqiao E. Rd., Puxin Township, Changhua County 513005, Taiwan
Telephone: 886-4-829-1101/3, 829-8140/1
Fax: 886-4-829-6551
E-Mail:
URL: www.jangwuel.com

Send inquiry to this company
