SPINTECH PRECISION MACHINERY CO., LTD. |
|
Product Information - High Speed Direct Drive Spindle
|

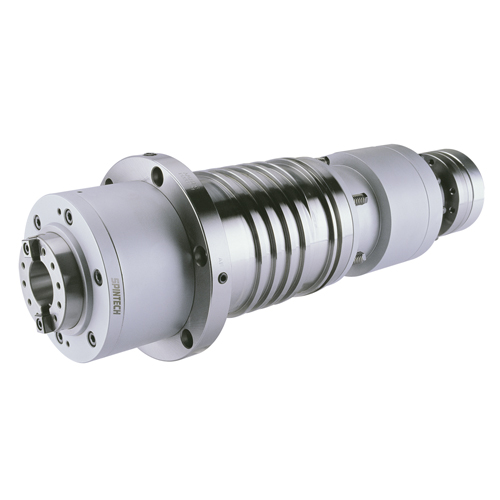

Click for a larger picture
High Speed Direct Drive Spindle
|
| Product Description |
| Product Name: |
High Speed Direct Drive Spindle |
| Model: |
V10AB |
|
| > Detail Specifications / Descriptions |
| High speed direct drive spindle is made of SNCM440 steel, strong stiffness, and use the bearings in precision class P4, KLUBAR NBU15 for lubrication. The tool interface includes HSK63A, BT/CAT/SK-30/40/50, the housing diameter is from Ø120 to Ø190mm, the speed range is from 8000rpm to 15000rpm, cooling system, coolant through spindle (CTS system), spindle splash ring, and the balance achieved G0.4. |
|
High Speed Direct Drive Spindle
|
