HEXAGON ELECTRIC INDUSTRIAL CO., LTD.

Product Information - High Frequency PVC Welding Machine

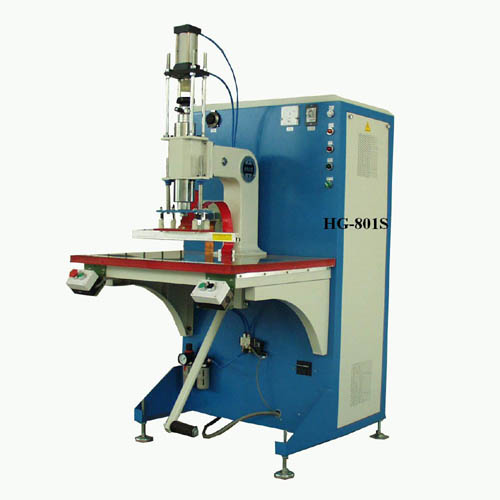

Click for a larger picture
High Frequency PVC Welding Machine

Product Description
Product Name:	High Frequency PVC Welding Machine
Model:	HG-801S

> Detail Specifications / Descriptions

MODEL : HG-401S HG-501S HG-601S HG-801S
SPEC

MAX. HF OUTPUT POWER : 4 KW 5 KW 6 KW 8 KW
OSCILLATION FREQUENCY : 27.12 MHz
POWER SOURCE : AC 220V/380V/415V/440V
1Φ/ 3Φ50Hz / 60Hz
IN-PUT POWER : 6.5 KVA 8.5 KVA 10 KVA 15 KVA
OSILLATION TUBE : E3062 7T85RB 7T69RB 7T69RB
RECTIFIER : Silicon Rectifier
ARC SUPPRESSOR : RELAY or Thyratorn 5557
DISTANCE BETWEEN UPPER & LOWER ELECTRODE : 150 mm
PRESS STROKE : 50 mm
LOWER ELECTRODE : 350 X 700 mm 400 X 800 mm
OPERATION : FOOT PADEL / PNEUMATIC IN TWIN OPERATED
