Product Information - CNC Toolroom Lathe

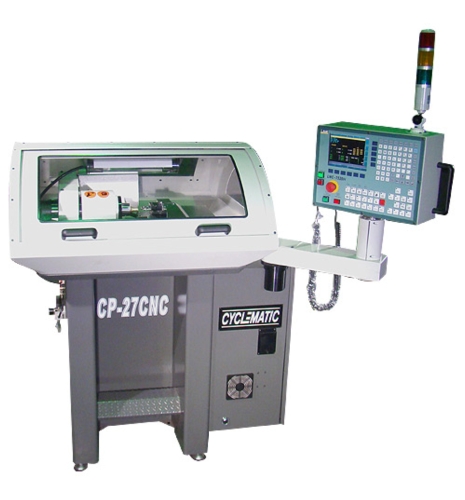

Click for a larger picture
CNC Toolroom Lathe

Product Description
Product Name:	CNC Toolroom Lathe
Model:	CP-27CNC
Country of Origin:	Taiwan

> Detail Specifications / Descriptions

CP-27 CNC is the NC upgrade from the CP-27EVS High prefromance finish lathe. It's keep the original machine's durabllity and elegant exerior while automating it with servos and CNC control. CP-27CNC Gang-Type CNC toolroom lathes which comes with FANUC controller(standard) or the other controller and has gang-type tooling and linear motion guides that enables you to get the job done faster.

·127 mm (5") swing over bed
·27 mm (1 1/16") 5C collet capacity.
·Fast lever collet chucking or air closer.
·Preloaded angular contact ball bearing spindle.
·Spindle speeds 50~6000 RPM.
·Quick change spindle speeds
·1 HP frequency controlled motor
·Tooling center height 12 mm
