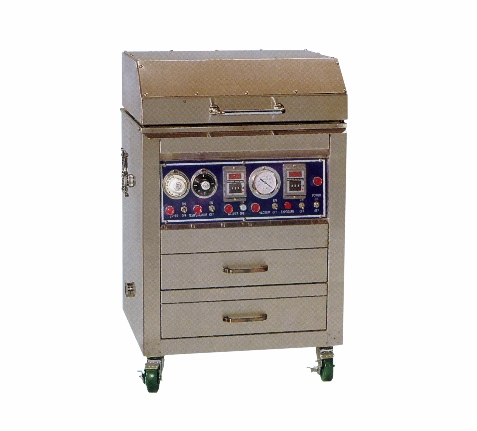

RESIN PLATE / LETTERPRESS MAKER
- Model:
- WE-FA2 / WE-FB3 /WE- FA3 / WE-FA4
Detail Specifications / Descriptions
All functions are compactly packaged into one unit of machine with a minimum of space requirement. All controls are located in the fornt of the machine. A drawer type exposure device is easy to load and unload negatives and block plates. For uniform light exposure through out a sufficient number of lamps are furnished. Wash out of the exposed plate is performed in the liquid tank where in brushes and moving plate holder areblowing type drying oven is also equipped. Operation is simple and requires no trained engineer nor skilled workers.
* Applications:
o Suitable for making resin plate and letterpress, Applicable to any cleaning materials of solvent, water and alcohole made by any brand.
Description WE-FA2, WE-FB3, WE-FA3, WE-FA4
Effective Area 62X44cm, 50X37cm, 42X30cm, 30X21cm
Power 3.0Kw, 2.5Kw, 2.5Kw, 1.8Kw
Dimension 96X76X102cm, 85X56X102cm, 68X58X91cm, 57X50X91cm
Weight 125kg, 110kg, 95kg, 80kg
