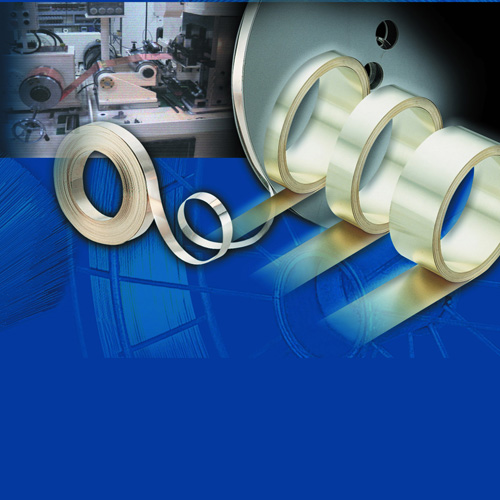

无隔银合金焊条

无隔银合金焊条

原产地:
台湾

详细规格及用途描述

The cadmium free silver brazing alloys are used for soldering
with ferrous metals, copper and copper alloys, nickel and nickel alloys, and
special metal such as tungsten carbide. In part, a variety of composite alloys
have different characteristics which depend on the proportion of silver.
Generally, the alloys contain a high proportion of silver will lower the melting
temperature; they become whiter which unlike the brass color. The fluid property
of the alloy will also be improved during soldering process.


Tin is used in silver soldering alloys for the same purpose of
using cadmium. Mix of tin with silver, copper, and zinc alloy can lower the
melting point temperature, and improve the fluid characteristic when applied to
ferrous metals.


MAIN
USE : Ultra-hard alloy joint, cutting tools, cutters, tungsten steel, and high
speed steel etc., Cadmium is a poisonous metal. Therefore, we developed the
cadmium free silver brazing alloys which can be applied to food wares, medical
equipment, chemical equipment, etc



Silver Brazing Alloys






Chemical Composition


AWS/JIS


Reference Data


Density
kg/cm3



Application




Ag


Cu


Zn


Sn


Mn


Ni


ln


Spec Class


Solidus oC


Liquidus oC




Cl-925


92.5


7.5


-


-


-


-


-


BAg-19


760


890










Cl-721


72


28


-


-


-


-


-


BAg-8


780


780


10.0


Suitable for furnace brazing in a protective
atmosphere without a flux, very fluid.




Cl-701


70


20


10


-


-


-


-


BAg-10


725


750


9.8


Particular using for joining with sterling silver.




Cl-601


60


23


17


-


-


-


-





675


695


9.8


Similar to Cl-721. With lower melting range.




Cl-562


56


22


17


5


-


-


-


BAg-7


620


650


9.5


To minimize stress corrosion cracking of
nickel or nickel-base alloys at low brazing temperature.




Cl-502Ni


50


20


28


-


-


2


-


BAg-24


660


707


9.0


Used to cover long narrow joint.




Cl-4900


49


16


23


-


7.5


4.5


-


BAg-22


680


705


8.9


With improved brazing characteristics,
used in brazing tungsten carbide tools.




Cl-450


45


30


25


-


-


-


-


BAg-5


665


745


9.2


Especially for brazing in the electric industry.




Cl-452


45


27


25


3


-


-


-


BAg-36


640


680


9.2


Suitable for brazing ferrous & nonferrous
base metals.




Cl-4553


45


26


21


-


-


3


5





665


685





Improved brazing quality & fluidity.




Cl-407


40


30


25


-


-


-


5





635


715


9.3


Good fluidity for welding compressor part.




Cl-402Ni


40


30


28


-


-


2


-


BAg-4


670


780


8.9


Used extensively for carbide tip brazing.




Cl-402Sn


40


30


28


2


-


-


-


BAg-28


640


700


9.1


With a narrower melting range than other cad-free alloys.




Cl-382


38


32


28


2


-


-


-


BAg-34


649


721


8.8


Cad-free, ideal substitute for Cl-351 &
Cl-301




Cl-350


35


32


33


-


-


-


-


BAg-35


680


750


9.0


Frequently used for brazing applications.




Cl-352


35


32


31


2


-


-


-





660


740


9.0


Similar to Cl-350, but lower melting range than CI-350.




Cl-300


30


38


32


-


-


-


-


BAg-20


650


750


8.8


Due to its good brazing properties, cad-free CI-300 & new application are being developed.




Cl-302


30


36


32


2


-


-


-





680


765


8.9


Similar to Cl-300, but with higher melting point.




Cl-252


25


40


33


2


-


-


-


BAg-37


685


770


8.7


Less proportion of silver. An economical product. Used for brazing steel, copper and brass.
