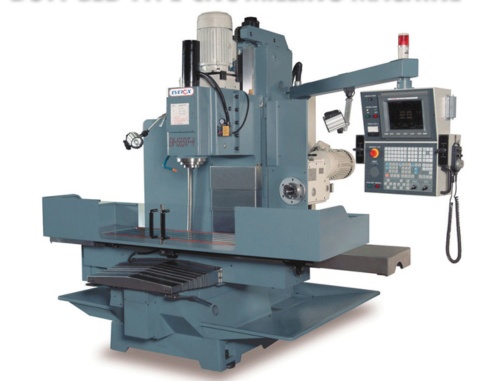

床台型强力铣床

床台型强力铣床

产品型号:
EM-1360VF

详细规格及用途描述

TRAVEL:
◎Longitudinal travel-X:1300mm
◎Cross travel-Y:600mm
◎Vertical travel-Z:600/(700/800 Opt.)mm
TABLE
◎Table size:510×1702mm
◎T-slots:18×80×5mm
◎Table load capacity:1200kgs
◎Speed feed:1-5000mm/min
◎Rapid feed:10000mm/min
SPINDLE:
◎Spindle taper:NT50#
◎Spindle speed:60-3000rpm(Manual triple vari-speed change)rpm / min
◎Spindle nose to table:120-720/(820/920 Opt.)mm
◎Spindle center to column:610mm
BALL-SCREW:
◎X×Y×Z axis:Ø 40×10×c5mm
MOTOR:
◎Spindle motor:10HP/4P/15HP/4P Opt. HP
◎X,Y,Z axis servo motors:1.3/2(Opt.)kw
◎Coolant pump:1/4HP
Net weight:6000 kgs
