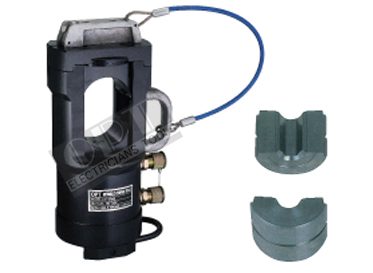

油壓壓著鉗
- 產品型號:
- OP-60S
- 原產地:
- 台灣
詳細規格及用途描述
Accepts existing 60ton U-type dies
Max connectpr / diameter : Approx. 60 mm
Ram stroke : 38.5 mm
Oil volume required : 303 cc
Force at die face : 540 kN (60 short ton) at 68.5 Mpa(10,000 PSI) of oil pressure
Size : 146 (Dia) x 450 (H) mm with Ground stand
Weight : 22.0 kgs
Accessories : Steel carrying case, Ground stand
Option: Die adapter for 12 ton U-type dies.
