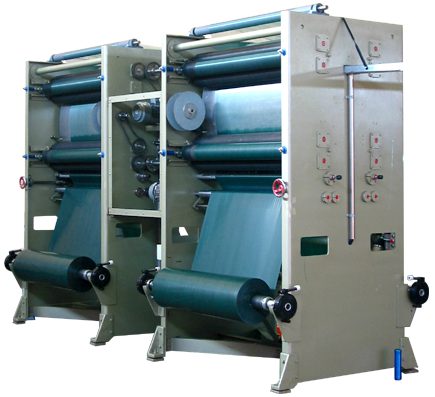

Film Slitting Extension Machine
- Model:
- WMF-1200
Detail Specifications / Descriptions
This slitting extension machine is located in front and rear of a film slitting extension machine, which is used to slit a HDPE film and extend, then yarns are fed directly to the film slitting extension Machine.
The machine consists mainly of:
Sheet width: 1,200mm
Opening rollers.
Fixed flat knives with adjustable spacing ring to give strip width of 4.0 - 7.0 mm
Transport rollers driven by 2 steps change drive.
Winding beam devices of the selvedge yarn.
Main drive: 2 sets machine attached one unit 2.2 kw motor
Heater: each set machine attached 5 kw.
