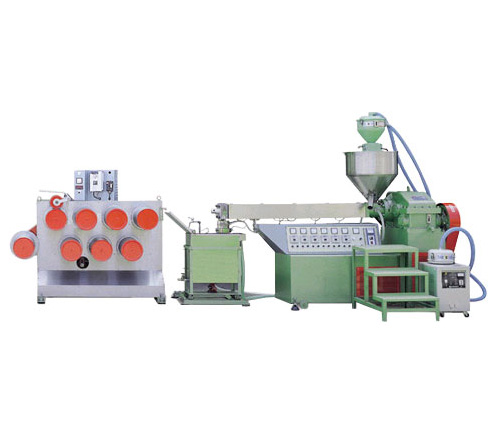

Monofilament Making Machine
Monofilament Making Machine

Model:TH-SN-C

Detail Specifications / Descriptions

Model
TH-SN-55C
TH-SN-65C
TH-SN-75C


Feature
Dia of Filament
0.1-1m/m


Max Extrusion Output
55kg/hr
65kg/hr
75kg/hr


Extruder
Screw Dia
55m/mø
65m/mø
75m/mø


Screw L/D
28:1
28:1
28:1


Screw Material
SACM-1 Steel With Hard Witn Nitrogen Treatment


Cylinder Material
SACM-1 Steel With Hard Witn Nitrogen Treatment


Driving Motor Inverter
15hp V.S Motor
15hpx6p
20hp V.S Motor
20hpx6p
40hp V.S Motor
30hpx6p


Heater Capacity
15kw
19.5kw
23kw


Die
Nozzle(Holes)
80-160
80-250
120-300


Control Panel
Type
Conveyor Type


Auto-Thermo Controller
6points
6points
7points


Cooling Device
Water Cooling Tank
Made of Stainless Steel


Take-Off
Unit A
Driving Motor Inverter
3hp VS. Motor
3hp
5hp VS. Motor
5hp
5hp VS. Motor
5hp


Take-Off Speed(m/min)
10~40
10~40
10~40


Take-Off Roller(Hard-Chrome-Plated Stainless Steel)
265m/møx8pcs
265m/møx8pcs
265m/møx8pcs


Press Roller
1pc
1pc
1pc


stretching Device
Type
Hot Water Type


Heater Capacity Auto-Thermo Controller
19kwpoints
19kwpoints
19kwpoints


Take-Off
Unit B
Driving Motor Inverter
5hp VS. Motor
5hp
71/2hp VS. Motor
71/2hp
10hp VS. Motor
10hp


Take-Off Speed(m/min)
40~160
40~160
40~160


Take-Off Roller(Hard-Chrome-Plated Stainless Steel)
265m/mø×7pcs
265m/mø×7pcs
265m/mø×7pcs


Electrostatic Oil sump
1pc


Annealing Device
Type
Hot Air Circulation Type


Length
4000m/m
4000m/m
4000m/m


Heater Capacity
18kw
20kw
22kw


Auto-Thermo Controller
2 points
2 points
2 points


With Blower Motor
3hp
3hp
3hp


Take-Off
Unit C
Driving Motor Inverter
5hp VS. Motor
5hp
5hp VS .Motor
5hp
71/2hp VS. Motor
71/2hp


Take-Off Speed(m/min)
40~160
40~160
40~160


Take-Off Roller
(Hard-Chrome-Plated Stainless Steel)
265m/møx7pcs
265m/møx7pcs
265m/møx7pcs


Winding Machine
Type
Large Coil Wheel
L8:x12: ø-L14:x14:ø-L14:x17:ø


No. of Spindles
2
2~4
2~4


Winding Motor
20~100kg cm


Traverse Motor
1hpx1pc 1/4hpx1pc


Waste Roll Drive
Winding Motor
1pc 30~50kg cm


Dimension
LxWxH(M)
19.5x3.1x2.5
21.5x3.1x2.5
21.5x3.1x2.5


· Consult the Factory the Customer Specification.


· Specifications Subject to Change Without Pre-Notification.
