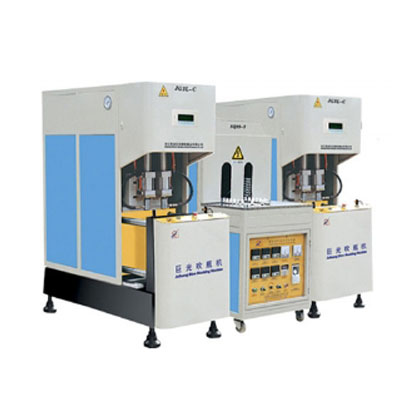

Semi Automatic Blow Molding Machine
- Model:
- JG3L-C/JG3L-2C
Detail Specifications / Descriptions
* Theoretial output:
JG3L-C: 700PCS/hr 1500PCS/hr
JG3L-2C: 2000PCS/hr 1000PCS/hr
* Heating capacity:
JG3L-C: 9.8kw
JG3L-2C: 15kw
* Max bottle volume:
JG3L-C: 4L(1 cav) 2L(2 cav)
JG3L-2C: 2.0L(2 cav) 4.0L(1 cav)
* Blowing pressure:
JG3L-C: ≤3.5Mpa
JG3L-2C: ≤3.5Mpa
* Motion Pressure:
JG3L-C: ≤1.0Mpa
JG3L-2C: ≤1.0Mpa
* Max*deameter*height:
JG3L-C: Ø 140XH340mm
JG3L-2C: Ø 140XH340mm
* Mould thickness:
JG3L-C: 120~220mm
JG3L-2C: 120~220mm
* Weight:
JG3L-C: 850kg
JG3L-2C: 1500kg
* Main Machine:
JG3L-C: 1400x600x1600mm
JG3L-2C: 1400x600x1600mmx2
* Heater:
JG3L-C: 1750x600x1450mm
JG3L-2C: 2000x600x1450mm
