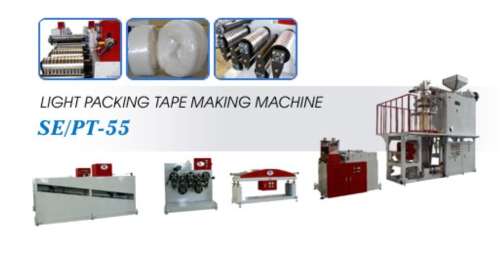

Light Paking Tape Making Machines

●When working the screen changer, the machine doesn’t stop and keep working.
●The film can be increased strongly and transparently, when it passes through the hot water bath and the heating blower.
●The film bag is easy to slit in the auxiliary take-off unit with slitting device.
●After the film bags become the strips; it is strong and tenacious after heated and stretched by heating bridge.
●The strips are easy to disassemble from the winding unit.
●We are the professional manufacturer and experience supplier for light packing tape making plant.






Model


SE/PT-55




Material


PP






OUTPUT




30-50 KG/HR






EXTRUDER




SINGLE






DRIVE MOTOR




30 HP × 6P + INVERTER






SPEED RANGE




STEPLESS






SCREW DIAMETER




55 MM






L/D RATIO




30/0






HEAT CAPACITY




12.0 KW






TEMP. CONTROL




6 ZONES






DIE




TYPE :




DOWNWARD TYPE






HYDRAULIC SCREEN CHANGE :




3 HP






DIAMETER :




ψ200 MM






COOLING UNIT




AIR BLOWER :




1/2 HP






AIR RING :




ALUM. CASTING






TAKE-OFF UNIT




WIDTH OF ROLLER :




600 MM






DRIVE MOTOR :




1 HP + INVERTER






SLITTING UNIT




SLITTING KNIFE :




6 PCS.






WIDTH OF ROLLER :




600 MM






REHEATING UNIT




STAINLESS STEEL PLATE :




2000×500 MM






TEMPERATURE CONTROL :




2 ZONES






HEATING CAPACITY :




9 KW






STRETCHING UNIT




WIDTH OF ROLLER :




500 MM






DRIVE MOTOR :




5 HP + INVERTER






WINDING UNIT




WINDING ROLLER :




(8+8)ROLLERS






DRIVE MOTOR :




2 HP + INVERTER






GUIDING ROLLER :




1 HP + INVERTER






FLOOR DIAMENSION




13 × 2.6× 3.8 M






MACHINE WEIGHT




5000KGW
