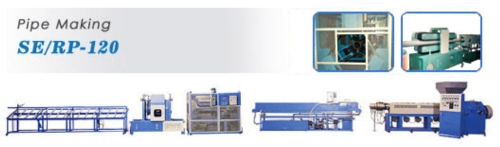

Pipe Making Machine

●We are the professional manufacturer and experience supplier for PVC pipe making plant and PVC profile making plant.




Model
SE/RP-45
SE/RP-55
SE/RP-65
SE/RP-85
SE/RP-100
SE/RP-120


Output (max.)
30kg/hr
45kg/hr
70kg/hr
100kg/hr
130kg/hr
180kg/hr


Product Diameter
3/8" - 3/4"
3/8" -
1 1/4"
1" - 2"
2" - 4"
4" - 5"
5" - 6"


Extruder


Screw Diameter
45mm
55mm
65mm
85mm
100mm
120mm


L:D ratio
24:1
24:1
24:1
24:1
24:1
24:1


Barrel cooling
3 zoness
3 zones
3 zones
4 zones
4 zones
5 zones


Drive motor
15 hp
20 hp
25 hp
40 hp
60 hp
75 hp


Heating capacity
8 kW
12 kW
16 kW
22 kW
35 kW
43 kW


Auto thermo control
5 zones
5 zones
6 zones
6 zones
7 zones
8 zones


Die Diameter
3/8" - 3/4"
3/8" -
1 1/4"
1" - 2"
2" - 4"
4" - 5"
5" - 6"


Vacuum sizing unit


Vacuum pump
3 hp
3 hp
3 hp
5 hp
5 hp
7 1/2 hp


Water recycling pump
1/2 hp
1/2 hp
1/2 hp
1/2 hp
1/2 hp
1/2 hp


Take off unit
caterpillar type


DC Drive motor
2 hp
2 hp
2 hp
3 hp
5 hp
5 hp


Auto cutting unit
(include stacker)


Drive motor
1/2 hp
1 hp
1 hp
2 hp
3 hp
3 hp


Dimension (m)
12x
1x1.7
13.4x
1.8x1.7
15x
1.8x1.8
17x
1.9x1.8
20x
2.1x1.8
22x
2.4x1.8


Machine weight
2000 kg
2500 kg
3000 kg
4200 kg
5600 kg
7000 kg


Required power
24 kW
32 kW
39 kW
60 kW
82 kW
110 kW
