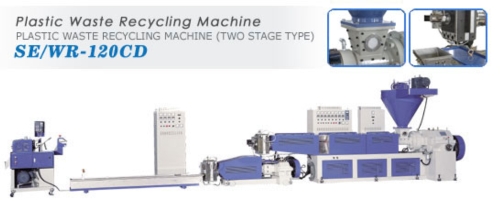

Plastic Waste Recycling Machine (Two Stage Type)
- Model:
- Recycling extrusion, Recycling(SE/WR-120CD)
Detail Specifications / Descriptions
●To reduce the source waste.
●Keep the environment clean, and reduce to be broken the environment secondly.
●We are the professional manufacturer and experience supplier for Waste recycling making machine.
●This model is two stage type which uses oil hydraulic screen changer to change the filter
more easily and promptly.
●The main die mould has a special design to get the vent effect and let the melted resin drops smoothly into the hopper.
●It equipped with a force feeding hopper to ensure the crushed films drops stably into the barrel.
●If we don’t have budget for crusher, we can choose side feeding hopper to help us achieving feeding perfectly.
●·We are the professional manufacturer and experience supplier for waste recycling plant and whole field extrusion plant.
Model
SE/WR-85CD
SE/WR-100CD
Material
pp pe film
pp pe film
Output (kg/hr)
100-150
150-200
Extruder
Main
Vice
Main
Vice
Drive motor (hp)
40
20 + inverter
60
30 + inverter
Speed range
2 step
stepless
2 step
stepless
Screw diameter (mm)
85
85
100
100
L:D ratio
32/1
10/1
32/1
10/1
Heat capacity
27 kW
10 kW
42 kW
12 kW
Thermal control (sets)
6
3
7
4
Vent equipment (set)
1
1
Die
Use hydraulic screen change
Cooling unit (mm)
2500 x 355 x 250
2800 x 355 x 250
Cutting unit (hp)
3 + inverter
5 + inverter
Force feeding hopper (hp)
5
5
Floor dimensions (m)
9.7 x 1.8 x 1.8
10.5 x 1.8 x 2.3
Machine weight (kg)
3400
4200
Model
SE/WR-120CD
SE/WR-150CD
Material
pp pe film
pp pe film
Output (kg/hr)
250 - 350
400 - 500
Extruder
Main
Vice
Main
Vice
Drive motor (hp)
100
40 + inverter
150
50 + inverter
Speed range
2 step
stepless
2 step
stepless
Screw diameter (mm)
120
120
150
150
L:D ratio
30:1
10:1
32:1
10:1
Heat capacity
60 kW
25 kW
80 kW
50 kW
Thermal control (sets)
8 sets
4 sets
9 sets
4 sets
Vent equipment (set)
1
1
Die
Use hydraulic screen change
Cooling unit (mm)
3000 x 395 x 250
3500 x 455 x 250
Cutting unit (hp)
7-1/2 + inverter
10 + inverter
Force feeding hopper (hp)
5
5
Floor dimension (m)
11.3 x 2.1 x 2.5
13.5 x 2.5 x 2.8
Machine weight (kg)
5000
6500
