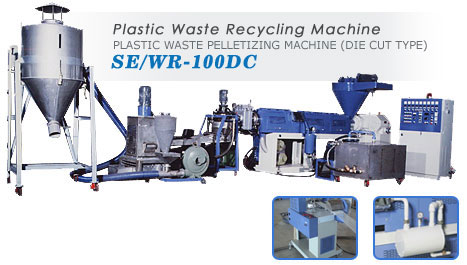

Plastic Waste Pelletizing Machine
- Model:
- Waste Pelletizing, pelletizer(SE/WR-100DC)
Detail Specifications / Descriptions
●To reduce the source waste.
●Keep the environment clean, and reduce to be broken the environment secondly.
●We are the professional manufacturer and experience supplier for Waste recycling making machine.
●High efficiency screen change equipment controlled by oil hydraulic to exchange the two filters without stopping machine.
●The motor is controlled by inverter. The motor with inverter can be adjusted the speed and it’s stability and low power consumption is better than V.S. motor.
●It is equipped with vacuum vent tank with waste water disposal tank which take the gas off promptly and dehydrate thoroughly to get cleaner pellets.
●It is convenient to keep the machine life as well as maintenance
Model
SE/WR-100DC
Material
hd ld pp crusher film
Output kg/hr
150 – 250
Extruder
Drive motor
60 hp
Speed range
2 step
Screw diameter (mm)
100 - 125
L:D ratio
34:1
Barrel With Pressure
Meter
Vacuum device
5 hp vacuum pump with water filter trough
Temperature control
9 zones
Die
Downward cut type
Cutter
3 pcs. sus #304
Motor
3 hp AC + inverter
Screen change
Hydraulic (7 1/2 hp)
Vertical dehydration unit
Stainless steel made
Motor
5 hp AC + 3 hp pump
Delivery unit
3 hp blower
Cooling tank
Stainless steel made
Capacity (kg)
300
Force feeding hopper (hp)
5
Floor dimensions (m)
11 x 4 x 3
