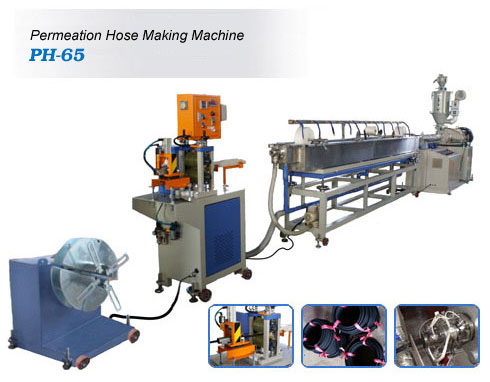

Permeation Hose Making Machines
- Model:
- PH-65
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
●This machine could be developed from Green Build Target.
●The hose which is filled up with water is utilized for capillaceous permeation theory to permeate uniformly the water into soil in the garden.
●This machine is easy to operate and produce.
●It equips the autoloader with the heating dryness tank, and it keeps the raw material to dry.
●It can be adjusted the winding width and dismantle the product conveniently with specially fixed design
●We are the professional manufacturer and experience supplier for Permeation hose making machine.
TITLE
65mm PERMEATION HOSE MAKING MACHINE
MODEL
SE/PH-65
MATERIAL
PS-475
OUTPUT
50-60 KG/HR
EXTRUDER
SINGLE TYPE
DRIVE MOTOR
30 HP + INVERTER
1 SET
SPEED RANGE
STEPLESS
SCREW
DIAMETER
65 MM
1 SET
L/D
RATIO
30
TEMP.
CONTROL
6 ZONES
DIE
TYPE
HOSE FORMED DIE
COOLING
UNIT
WATER TANK
DIMENSION
L 4500×W 350× H 301
MATERIAL
SUS 304#
WEIGHT
350 KG
DOUBLE
WHEEL TAKE-OFF UNIT
TAKE-OFF MOTOR
2 HP + INVERTER
DIMENSION
L 850×W 500× H 1680
WEIGHT
250 KG
FIXED
WINDER
POWER MOTOR
1/2 HP DC MOTOR
REEL SIZE
INSIDE DIAMETER ψ180-200
OUTSIDE DIAMETER ψ620
DIMENSION
L 800×W 500× H 1050
MATERIAL
S50C (MEDIUM CARBON STEEL)
MACHINE
WEIGHT
2600~2700 KG
