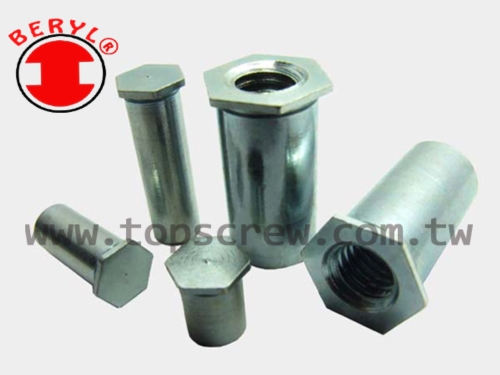

Tsc1 Self-clinching Standoffs
- Model:
- TSC1 SELF-CLINCHING STANDOFFS
- Country of Origin:
- Taiwan
- Material:
- STEEL, STAINLESS STEEL
- Color:
- WHITE, BLACK, RED, YELLOW, IRIDESCENT...ETC

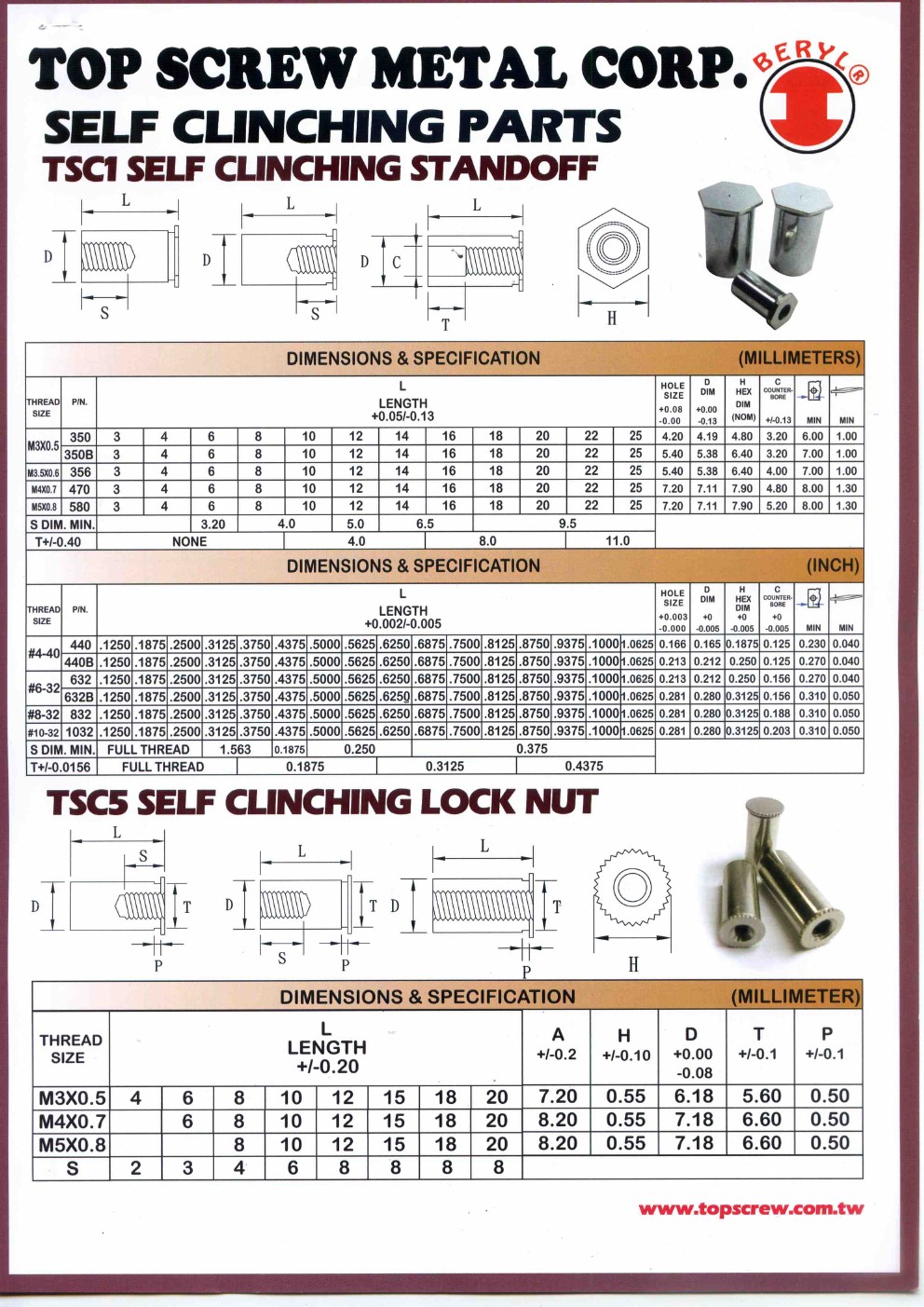

Detail Specifications / Descriptions
NR-NOT RECOMMENDED.
RECOMMENDED INSTALLATIONPROCEDURE
1.INSERT STANDOFF THROUGH HOLE IN SHEET INTO ANVIL.
2.APPLY ONLY SUFFICIENT SQUEEZING FORCE BETWEEN PARALLEL SURFACES OF PUNCH AND ANVIL TO EMBED HEX HEAD FLUSH IN SHEET. AVOID EXCESSIVE PRESSURES.
ADVANTAGES OF CLINCHING PARTS:
‧MAY BE INSTALLED USING ANY PARALLEL ACTING SQUEEZING FORCE.
‧PROVIDE HIGH PUSHOUT AND TORQUE-OUT RESISTANCE.
‧DO NOT REQUIRE SPECIAL HOLE PREPARATION, SUCH AS CHAMFERING AND DEBURRING.
‧REVERSE SIDE OF METAL SHEET REMAINS FLUSH.
‧NO RETAPPING NECESSARY AFTER APPLICATION.
‧LOW INSTALLED COSTS.
STANDOFFS：
‧USED WHERE IT IS NECESSARY TO STACK OR SPACE COMPONENTS AWAY FROM THE PANEL.
‧THRU-THREADED OR BLIND TYPES ARE GENERALLY STANDARD.
★OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST
