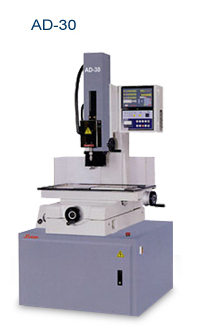

Drilling EDM
- Model:
- AD-30
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
High pressure fluid delivery motor features an automatic pressure release when the job is complete.
Spindle feed is driven by servomotor for fast, high accuracy positioning.
Great drilling capacity with diameters from 0.2mm to 3.0mm (0.007’’ - 0.118’’). Machining depth to hole ratio up to 200:1.
A great machine for curved, spherical, and irregular parts.
Time preset for simple and easy operation during multi-hole drilling.
Distilled water can be used as the dielectric fluid, saving cost and disposal issues associated with conventional dielectric fluid.
Uses brass or copper electrodes with minimal electrode wear.
Suited to drilling wire cut starter holes or other types of holes in molds.
