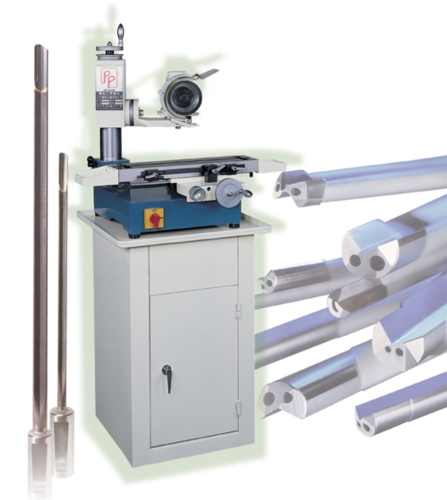

Gun Drill Grinder
Gun Drill Grinder

Model:PP-600 Country of Origin:Taiwan

Detail Specifications / Descriptions

■ Adopt precise 6 pawl chuck, could grind the 6 faces of the gun drill just be clipped one time. Any sizes could be ground and could keep the gun drill center without off center.
■ Use the leverage, could grind the inner angle and out angle of the gun drill at the same time.
■ Simple and safe operation, anybody could quickly learn how to use

Working table area:125x520 mm
Vertical adjustment of wheel head:140 mm
Rotary angle of wheel head:360°
Longitudinal travel of table:185 mm
Cross travel of saddle:120 mm
Size of wheel: 125x50x31.75 mm
Speed of motor:3600 RPM
Motor:1/2HP 110V/220V/380V
N.W/G.W.:190 kgs/ 240 kgs
Size of packing (LxWxH):770x800x1540 mm
