70 TON 4.0 OZ
70 TON 4.0 OZ

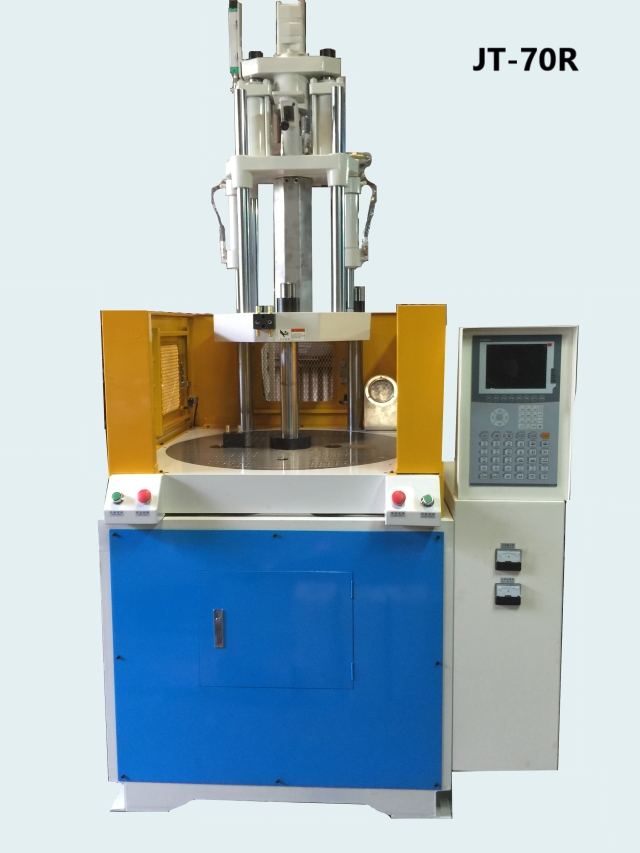

Model:JT-70R

Detail Specifications / Descriptions

MODEL
Unit
JT-70


(SD) (R)


Injection
Unit
Screw Diameter
MM
34
38
40


Injection Pressure
Kg/CM²
1815
1619
1311


Theoretical Shot Volume
CM³
140
157
194


Max. Shot Weight(PS)
G / OZ
129 / 4.5
145 / 5
179 / 6


Injection Rate
CM³ /Sec
83
93
115


Injection Stroke
MM
155


Screw Rotation Speed Max
RPM
0-200


Numbers of
Temperature Control
ZONE
3


Capacity of Hopper
L





Clamping
Unit
Clamping Force
T
70


Opening Force
T
6

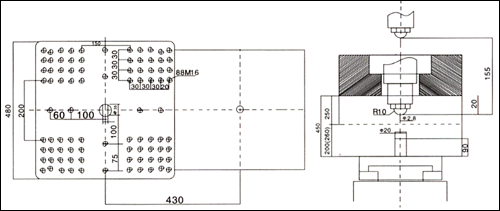

Platen Size
MM
680x460


Distance Between Tie Bar
MM
500x280


Min. Mold Height
MM
180


Opening Stroke
MM
250


Max. Open Daylight
MM
430


Ejector Power
T
1.3


Ejector Stroke
MM
65
35
65


Slider
Unit
Slider Size/Turn
Table Diameter
MM
480x450

930


Numbers of
Mold Station
Sets


2


Max. Mold Dimension
MM


350x300


Rotation Angle of
Turn Table



180°


HydraulicElectricity Unit
Max. Hydraulic Pressure
Kg/CM²
140


Pump Output
L/Min
65


Working Oil Consumption
L
250


Cooling Water Consumption
L
800-1200


Hydraulic Motor Power
Kw/HP
11.2/1.5


Barrel Heater Capacity
KW
5


Total Electrical Consumption
KW
16.2


Others
Machine Weight
T
2.5 x 3


Machine Overall Dimensions
MM
2.5 x 1. 4x 3.5


Shipping Gross Weight
T
2.8


Shipping Measurements
(L x W x H)
MM
2.8 x 1.6 x 2.3
