Power Supply
Power Supply

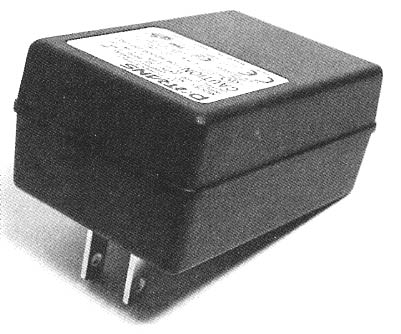

Model:15 Watt External Power Supply

Detail Specifications / Descriptions

Features:
Universal input 100 to 120 VAC
Single, output
Overload protection
100% Hi-Pot tested
100% cycling burnt-in

Output Specifications:

Line regulation 1%
Load regulation ±5%
Efficiency 70%
Hold up time 16ms
Transient response Main output 50-100% load
Protections: -- Over current -- Over voltage
-- Over power
-- Short circuit protections

Input Specifications:

Input voltage 90 to 127VAC
Input frequency 47 to 63 Hz
Input current 0.4A max.
Inrush current 40A max. @250AVC

Electrical Specifications:

Dielectric strength test input/output: 4242VDC
Leakage current <0.25.5mA
MTBF Min. 50,000 hours MIL-HDBK-217F

Environmental Specifications:

Operating temperature 0~40°C
Non-operating -20~85°C
Relative humidity non-condensing 10~95%
Convection cooling
Vibration 2.0G, 10-300Hz

Safety:

USA, CSA
